Out of Stock

SKU: ME-BG-50-160

50 to 160mm Dial Bore gauge

£34.09 EX VAT

£40.91 INC VAT

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

The dial bore gauge offers - an accurate method of measuring a bore, or detecting a taper or ovality
Calibration - The dial bore gauge must be calibrated to a known size and will indicate the deviation from that size by a maximum of 1mm
The threaded anvils are used to set the measuring range to within 1mm of the desired bore to be measured or produced
An outside micrometer, setting ring or slip gauges can be used to calibrate the bore gauge
The bore gauge has a knurled locknut to secure the threaded anvils
There is a sprung loaded guide used to centralize the two measuring contact points to the bore
At the opposite end of the gauge there is a heat insulating handle with a split collet and knurled locking ring to secure the dial indicator

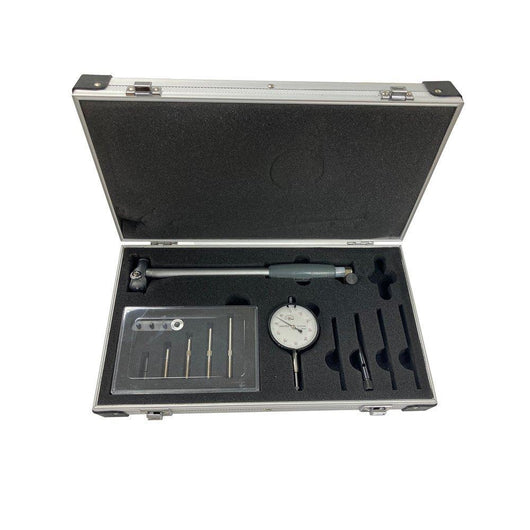

Included with the bore gauge - Probe body, Dial indicator, 5 Anvils, Storage case and Instructions
Measuring Range - 50 to 160mm

Machine-DRO History - A division of The Allendale Group, a family run British company founded in 2003. Our roots are firmly based in the UK, with a head office, engineering and inspection department at our works in Hoddesdon, Hertfordshire. We pride ourselves on being a measuring tool specialists offering tools, services, advice and expertise to our end customers and international distributor network.

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396108705
Data output	No
Digital analogue	Anologue
Measurement range	50-160mm
Measurement units	Metric
Mpn	ME-BG-50-160
Product series	BG Series - Cylinder Bore Gauges
Product sub type	Cylinder Bore Gauge
Resolution	0.01mm
Waterproof	No
