- 4mm diameter interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement
- The ratchet stop provides constant measuring force.
- Measuring rod lock.
- Graduation - 0.001"
- Measuring Range - 0-6"
- Accuracy - +/- 0.003mm (0.00015")
- Number of rods - 6
- Width of base is 4".

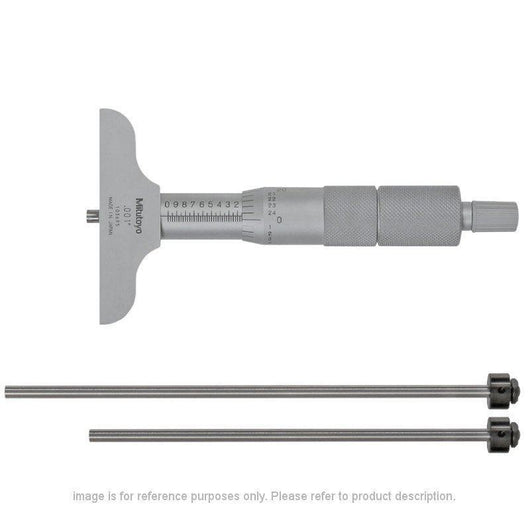

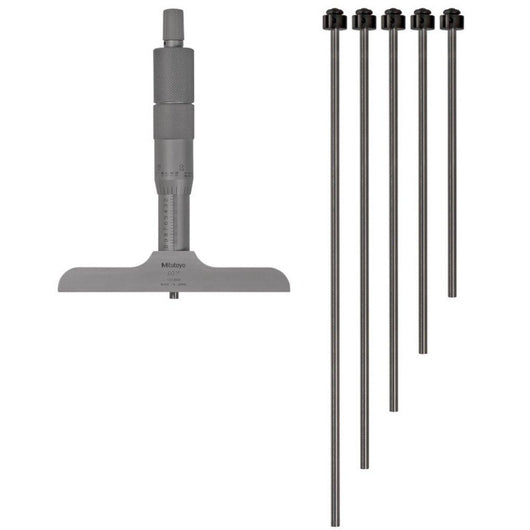

The interchangeable rod depth micrometer is available as standard mechanical, mechanical digital and electronic digimatic (see separate digimatic entry). All models have hardened tool steel bases. Measuring rods are ground and micro-lapped on the faces. The sleeve and thimble are satin-chrome finished. Rod diameters are .157" (4mm) and are adjustable in either direction for calibration and wear compensation.
