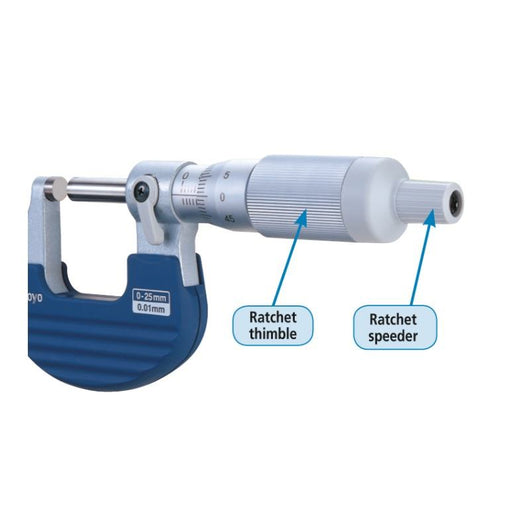

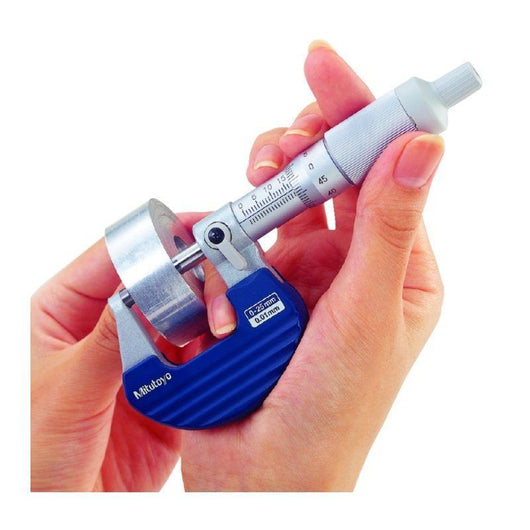

- Works both from the thimble and the speeder, enabling easy, one-handed operation.
- Ratchet¢‚¬˜s clearly audible operation provides reassurance that measurements are being taken at a constant, preset measuring force.
- Heat insulating frame

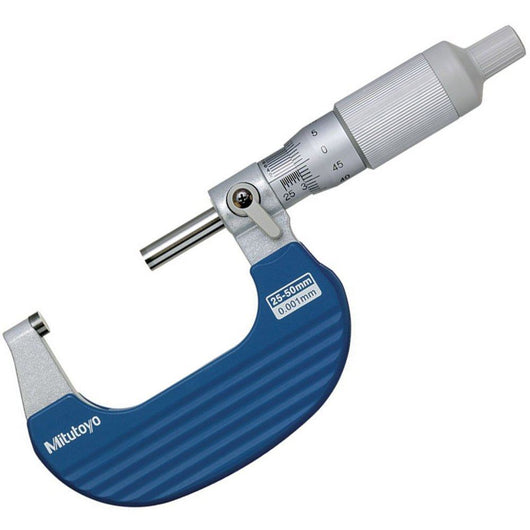

This Ratchet Thimble Micrometer has a mechanism that ensures consistent and reliable measurements. It offers you the following benefits:
- It works both from the thimble and the speeder, enabling easy, one-handed operation.
- Ratchet€˜s clearly audible operation provides reassurance that measurements are being taken at a constant, preset measuring force.
- Heat insulating frame
-
Key Specifications
Range: 1 - 2 Inch
Parallelism: 0,00008"
Maximum Permissible Error J MPE: ±0,0001"
Measuring force: 5 - 10 N
Remarks: Ratched Thimble
Mass_ 270 g
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: With spindle lock, ¸6,35 mm, spindle pitch 0,5 mm
Scale: Thimble and sleeve satin chrome finish, ¸18 mm
Digital/Analog_ Analog
Inch-Metric: Inch
Graduation: 0,0001"
Measuring spindle: With spindle lock, ¸6,35 mm, spindle pitch 0,635 mm
Delivered: Including box, key, setting standard (from 25 mm upward), certificate of inspection
