In Stock

SKU: ME-BG-10-18

10 to 18mm Dial Bore gauge

£33.63 EX VAT

£40.36 INC VAT

Range	10-18mm
Resolution	0.01mm
Measurement Units	Metric
Data Output	No

Order in the next [totalHours] hrs %M mins and get it as soon as

Description
Product Specifications
Shipping & Delivery Information
Warranty Information

Description

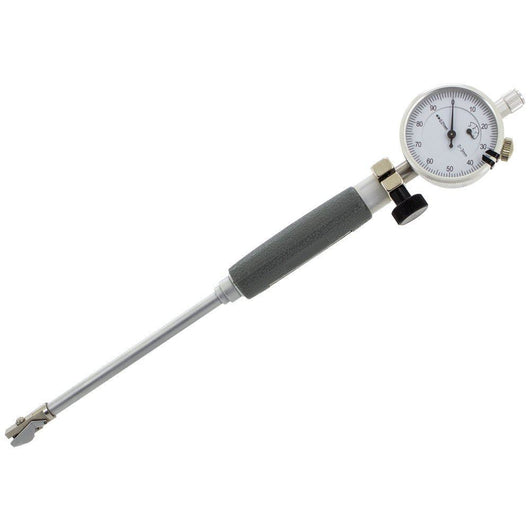

The dial bore gauge offers - an accurate method of measuring a bore, or detecting a taper or ovality
Calibration - The dial bore gauge must be calibrated to a known size and will indicate the deviation from that size by a maximum of 1mm
A set of spacer rings and anvils are included with the bore gauge

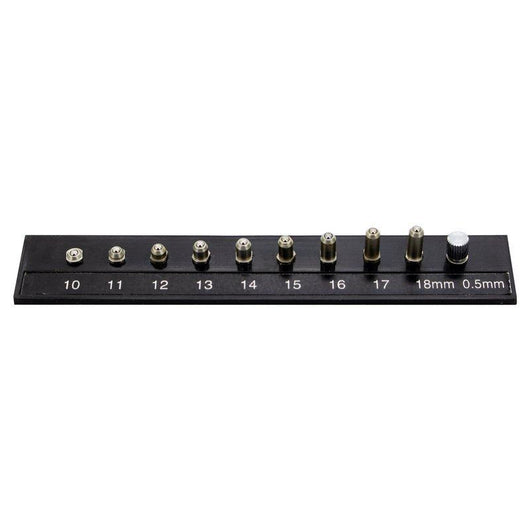

The anvils are used to set the measuring range to within 1mm of the desired bore to be measured or produced
An outside micrometer, setting ring or slip gauges can be used to calibrate the bore gauge
The bore gauge has a knurled locknut to secure the anvils and spacers

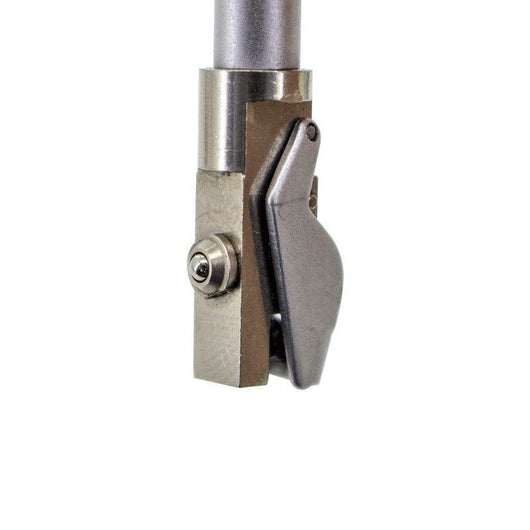

There is a sprung loaded guide used to centralize the two measuring contact points to the bore

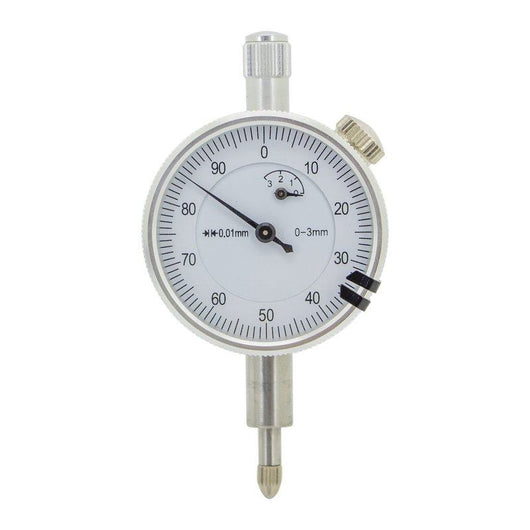

At the opposite end of the gauge there is a heat insulating handle with a split collet and knurled locking ring to secure the dial indicator

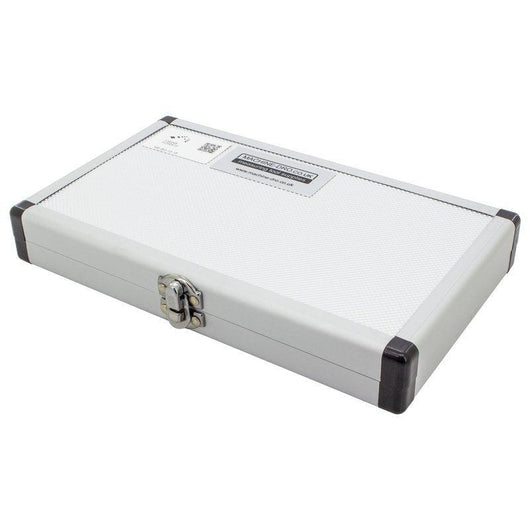

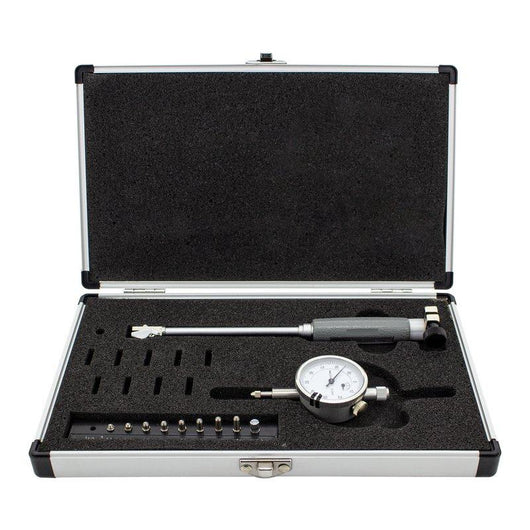

Included with the bore gauge - Probe body, dial indicator, 9 anvils, 1 spacer rings, storage case and instructions
Measuring Range - 10 to 18mm

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396108637
Data output	No
Digital analogue	Anologue
Measurement range	10-18mm
Measurement units	Metric
Mpn	ME-BG-10-18
Product series	BG Series - Cylinder Bore Gauges
Product sub type	Cylinder Bore Gauge
Resolution	0.01mm
Waterproof	No
