12 7mm 0 5 mitutoyo 543 301b absolute lcd digimatic indicator id c

Pre-order

SKU: MIT-543-301B

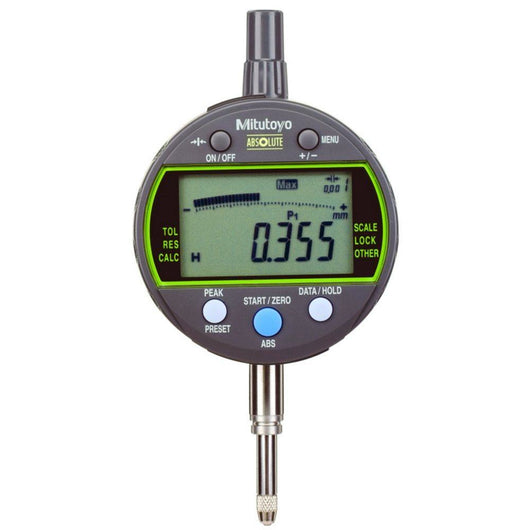

12.7mm (0.5") Mitutoyo 543-301B Absolute LCD Digimatic Indicator ID-C

Name: 12.7mm (0.5") Mitutoyo 543-301B Absolute LCD Digimatic Indicator ID-C
Brand: Mitutoyo
SKU: MIT-543-301B
Price: 444.00 GBP
Availability: InStock

£444.00 EX VAT

£532.80 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

The new Peak Hold-Type Digimatic Indicator features both a Key-Lock and Parameter-Lock. This is designed to prevent accidental changing of settings during operation
Parameter setting software makes it even easier to set all of the available parameters
An analog bar provides easy to read values when scanning for Max, Min, and TIR Values

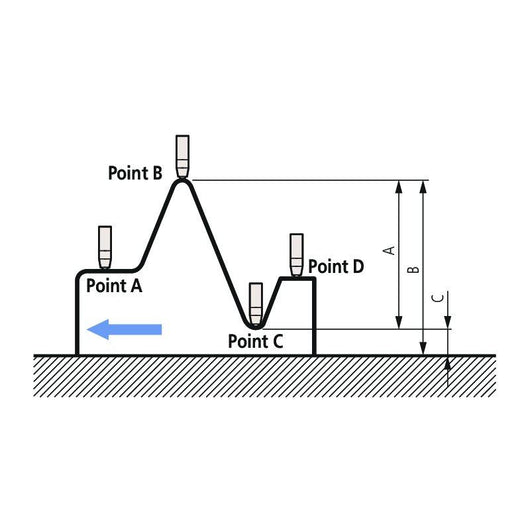

The maximum, minimum, or runout value can be displayed during measurement
GO/Â±NG judgment is performed by setting the upper and lower tolerances for max., min. and runout values
High speed sampling ratio of 50 times/s
Employing the ABSOLUTE linear encoder, the Signal ID-C always displays the spindle "Absolute Position"Â from the origin at power-on
A USB interface box can be used to set up the indicator from PC via dedicated software
Range: 12.7mm (0.5")
Resolution: 0.01mm (0.0005")

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

Key Specifications

Accuracy: 0.003mm (0.00010")

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396187182
Accessories	MIT-905338, MIT-905409, MIT-02AZD790F, MIT-02AZE140F, MIT-06AFM380F, MIT-21EZA198, MIT-21EZA313, MIT-21JZA295
Accuracy e mpe	0.003mm
Accuracy h mpe	0.002mm
Battery life	Approx. 6 Months
Battery type	CR2032
Contact point thread	M2.5x0.45
Data output	Yes
Discontinued since	22/11/2022
Display type	Digital
Lug back	Lug Back
Measurement range	0-12.7mm (0-0.5")
Measurement units	Metric/Imperial
Mpn	543-301B-10
Product series	Series 543 - ABSOLUTE Digimatic Peak Value Hold Indicator ID-C
Product sub type	Plunger
Repeatability	0.002mm
Replacement sku	ProductDrop
Resolution	0.01mm (0.0005")
Stem diameter	8mm
