SKU: ME-BG-160-250

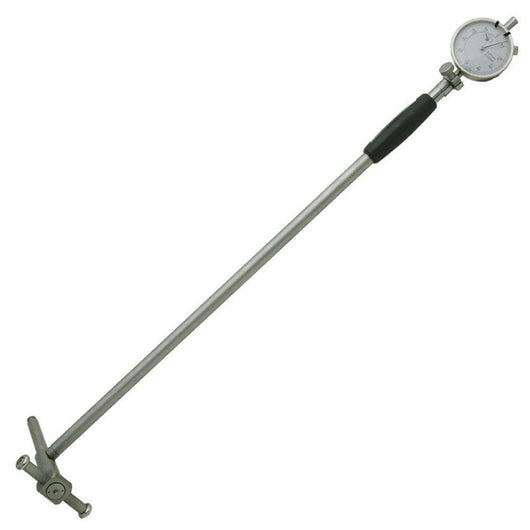

160 to 250mm Dial Bore gauge

£46.94 EX VAT

£56.33 INC VAT

Range	160-250mm
Resolution	0.01mm
Measurement Units	Metric
Data Output	No

Description
Product Specifications
Shipping & Delivery Information
Warranty Information

Description

The dial bore gauge offers - an accurate method of measuring a bore, or detecting a taper or ovality
Calibration - The dial bore gauge must be calibrated to a known size and will indicate the deviation from that size by a maximum of 2mm

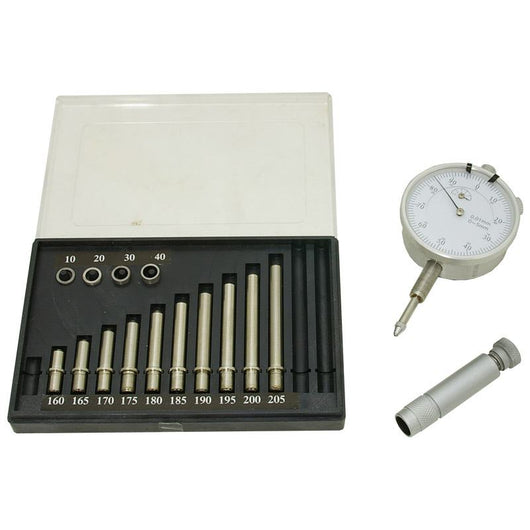

A set of spacer rings and anvils are included with the bore gauge
The anvils are used to set the measuring range to within 1mm of the desired bore to be measured or produced
An outside micrometer, setting ring or slip gauges can be used to calibrate the bore gauge
The bore gauge has a knurled locknut to secure the anvils and spacers

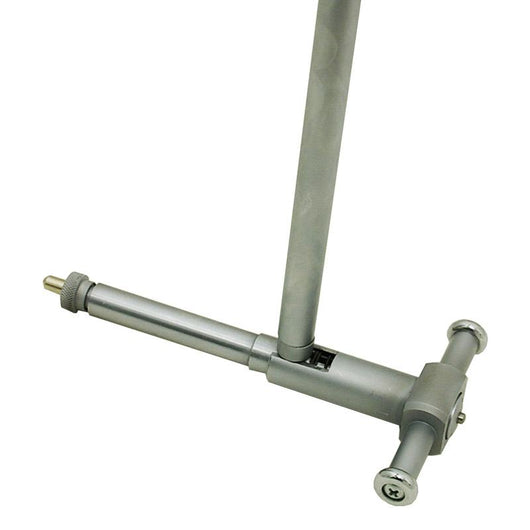

There is a sprung loaded guide used to centralize the two measuring contact points to the bore

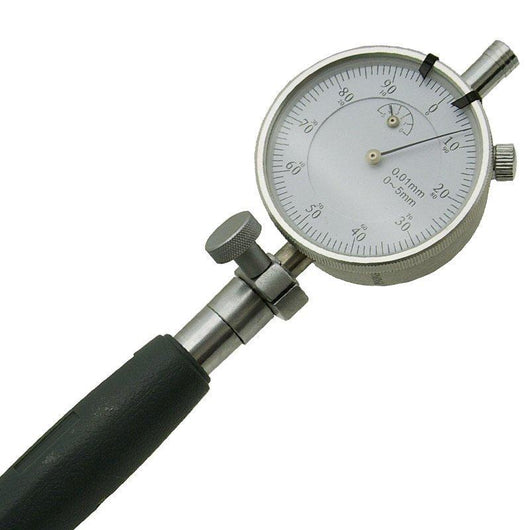

At the opposite end of the gauge there is a heat insulating handle with a split collet and knurled locking ring to secure the dial indicator

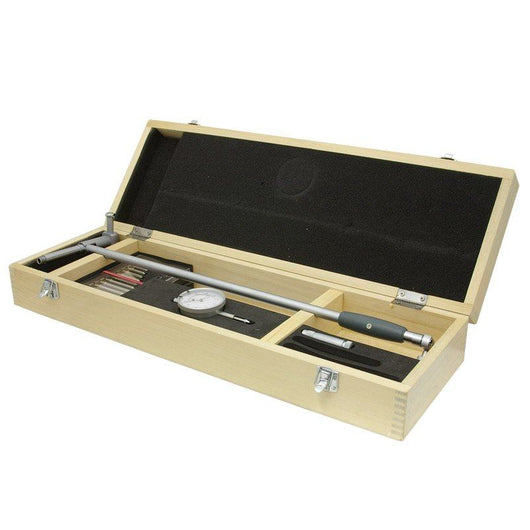

Included with the bore gauge - Probe body, Dial indicator, 10 Anvils, 4 Spacer rings, Wooden storage case and Instructions
Measuring Range - 160 to 250mm

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396108651
Data output	No
Digital analogue	Anologue
Measurement range	160-250mm
Measurement units	Metric
Mpn	ME-BG-160-250
Product series	BG Series - Cylinder Bore Gauges
Product sub type	Cylinder Bore Gauge
Resolution	0.01mm
Waterproof	No
