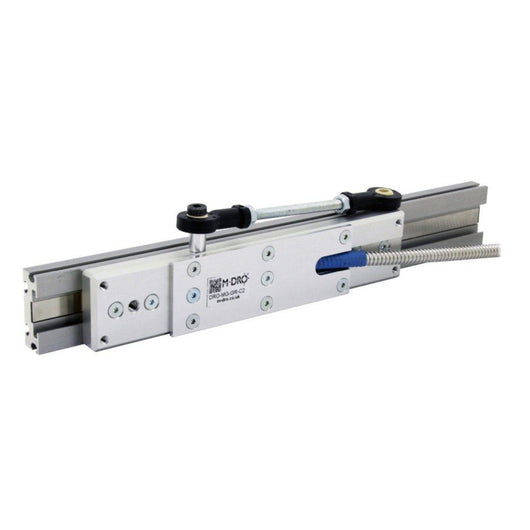

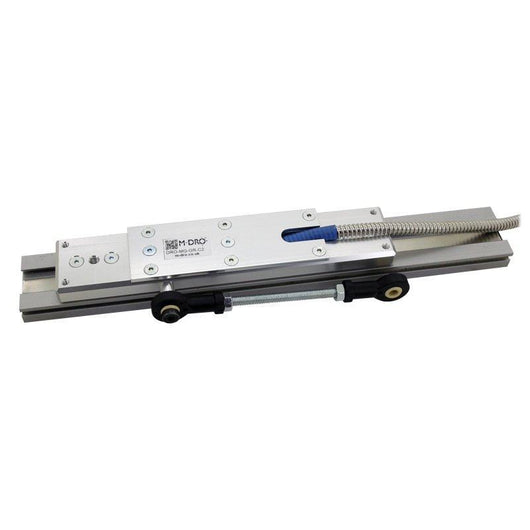

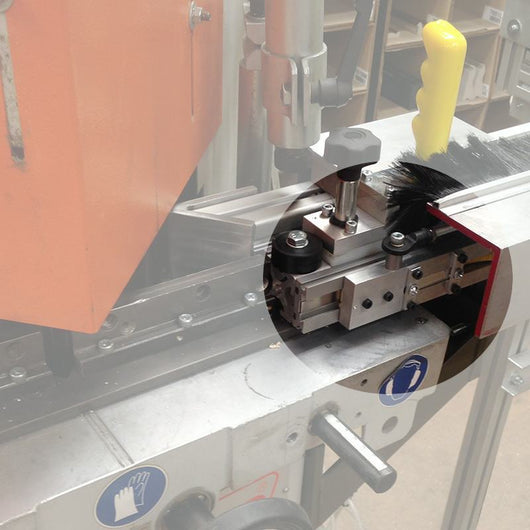

This 300mm (12 inch) guided carriage and linear rail system is engineered for precise alignment and stable positioning of M-DRO magnetic encoder reading heads. Designed to maintain the critical air gap between the reading head and magnetic tape, the carriage ensures consistent, high-accuracy feedback in demanding industrial applications.
The system incorporates a rod end linkage, allowing for significant misalignment tolerance with existing machine slideways-ideal for retrofitting and ensuring ease of integration. Built to withstand shock, vibration, and contamination, it is perfectly suited for harsh environments.
The maintenance-free design features oil-free bearings and is compatible with M-DRO EH-05, EH-25, and EH-01 magnetic encoder heads (sold separately). The reading head easily bolts to the carriage, enabling fast setup and reliable operation.

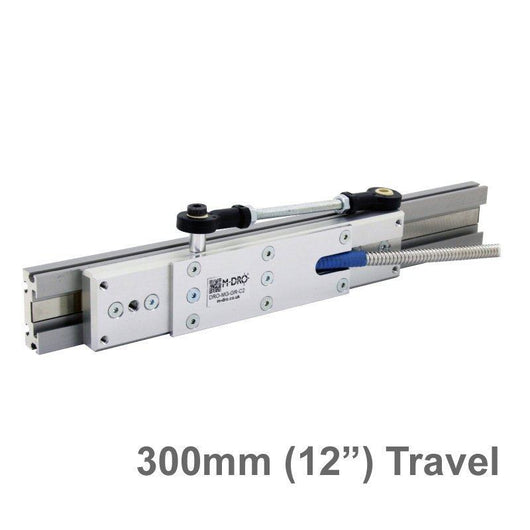

300mm (12") travel range - suitable for medium-stroke applications
Consistent encoder spacing - maintains precise gap for optimal performance
High resistance to shock, vibration, and contamination ingress
No-contact magnetic system - no wear or mechanical degradation
Sealed IP67 magnetic head compatibility - ideal for coolant-rich and dusty environments
Oil-free, maintenance-free bearings - minimal downtime and low cost of ownership

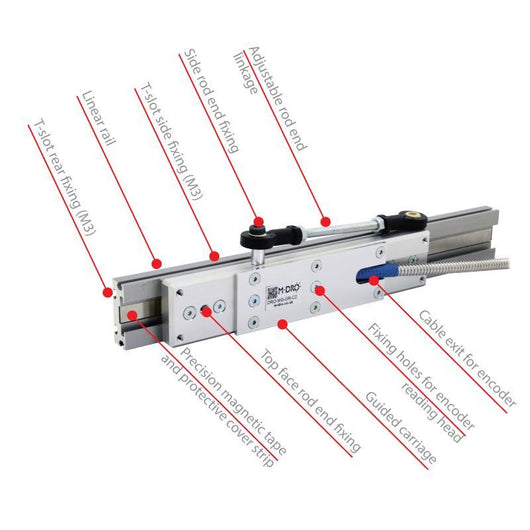

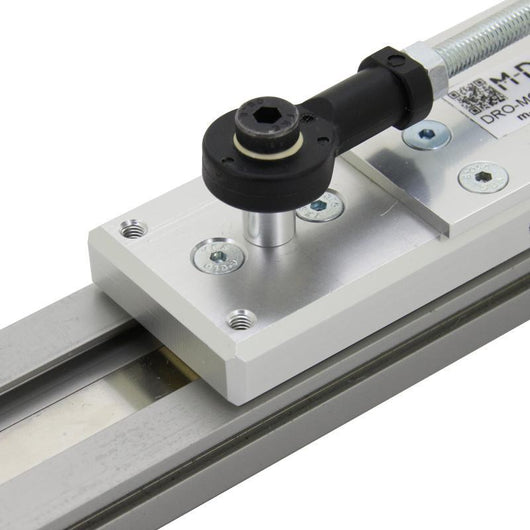

Rod end linkage - accommodates machine slideway misalignment
Quick installation - magnetic head bolts directly onto carriage (head sold separately)
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5055396157673 |
