Out of Stock

SKU: ME-HG-VE-300

300mm (12") Vernier Height Gauge

£60.33 EX VAT

£72.40 INC VAT

Range	0-300mm (0-12")
Resolution	0.02mm (0.001")
Measurement Units	Metric/Imperial
Display Type	Vernier
Data Output	No

Description
Product Specifications
Shipping & Delivery Information
Warranty Information

Description

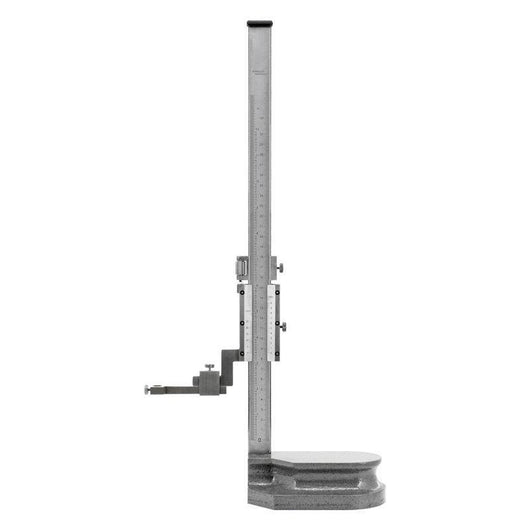

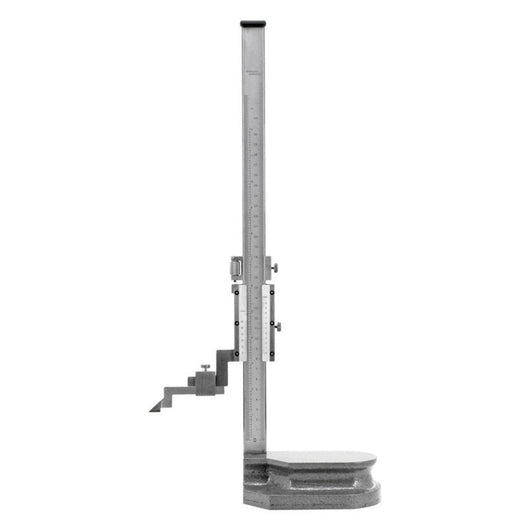

300mm (12") Vernier Height Gauge.
Metric and Imperial measuring.
The scale beam is mounted in the ground cast iron base, providing a rigid assembly for the display head.

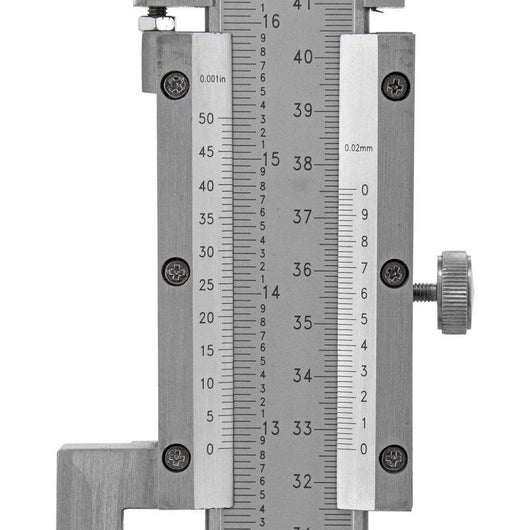

The fine feed adjustment on the display head allows for precision measuring. The reading head also has a locking screw to fix the head in any position along the scale beam.

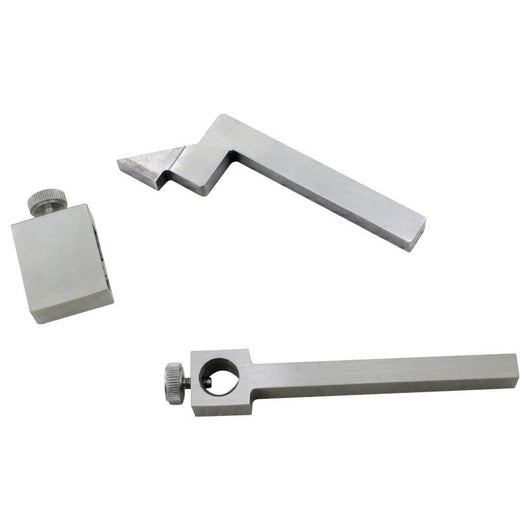

The gauge is supplied with two attachments, a scribe with a carbide tip and a universal attachment with a 8mm diameter fixing hole with a knurled locking bolt.
Ideal for attaching depth, thickness, other probes or indicators to the height gauge.
Included with the Gauge - Scriber with carbide tip, universal attachment and Instructions.
Resolution - 0.02mm (0.001inch).
Accuracy - ±0.04mm.

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396168112
Accuracy	+/-0.04mm
Base material type	Cast Iron
Data output	No
Display type	Vernier
Measurement range	0-300mm (0-12")
Measurement units	Metric/Imperial
Mpn	ME-HG-VE-300
Product series	HG Series - Vernier Height Gauge
Product sub type	Scribing
Resolution	0.02mm (0.001")
Scribe material type	Carbide
Thumb roller type	Fine Adjustment
