SKU:
MEB-MW197-30DDL

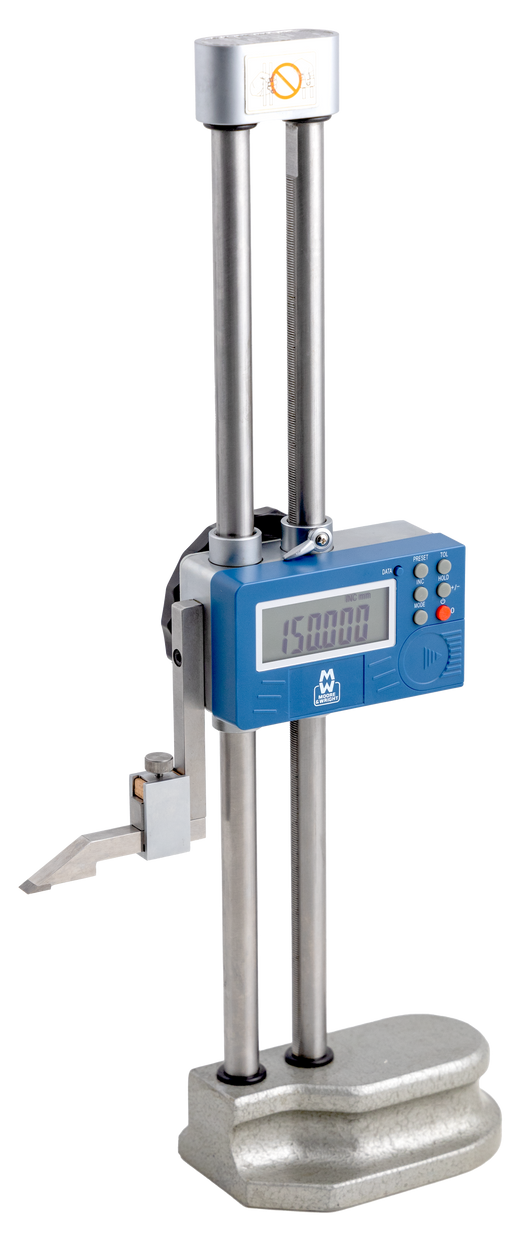

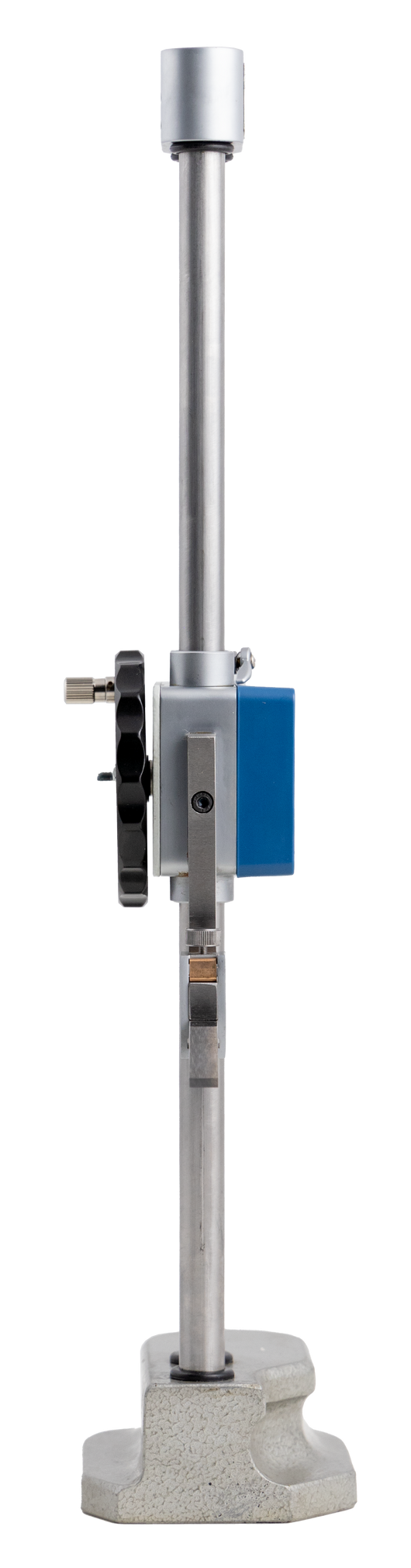

Moore & Wright MW197-30DDL Digital Height Gauge 0-300mm, BT
£325.00
EX VAT
£390.00
INC VAT
Please contact us for lead times on this product
The Moore & Wright MW197-30DDL Digital Height Gauge is designed to deliver precision and efficiency in workshop measurement tasks. Featuring a large backlit colour LCD display, this gauge ensures excellent visibility in any lighting conditions. Its built-in wireless data transfer allows seamless export directly to Windows applications such as Excel, Word, and Notepad, eliminating the need for manual data entry and reducing errors.
Engineered for versatility, the MW197 offers absolute and incremental measurement modes, a measurement hold function, and a tolerance setting for quick Go/No Go indication. The 1.6 m/s response speed enhances productivity, while the large handwheel ensures fine adjustments for the carbide-tipped measuring scribe, delivering high precision.
Built to withstand workshop environments, the MW197 features IP40 ingress protection and comes with a hard protective case for secure storage. Powered by a CR2450 lithium battery with an external power port and automatic power-off function for energy efficiency, this digital height gauge is a reliable choice for professional use.
UKAS CALIBRATION AVAILABLE
| Product Code | Description | Range (mm) | Range (inch) | Resolution (mm) | Resolution (inch) | Accuracy (mm) | Accuracy (inch) |
|---|---|---|---|---|---|---|---|
| MW197-30DDL | 0-300mm Digital Height Gauge with Bluetooth Data Export | 0-300 | 0-12 | 0.01 / 0.001 | 0.00005 | 0.02 | 0.001 |
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202965215 |
