SKU:
MEB-XTL65M

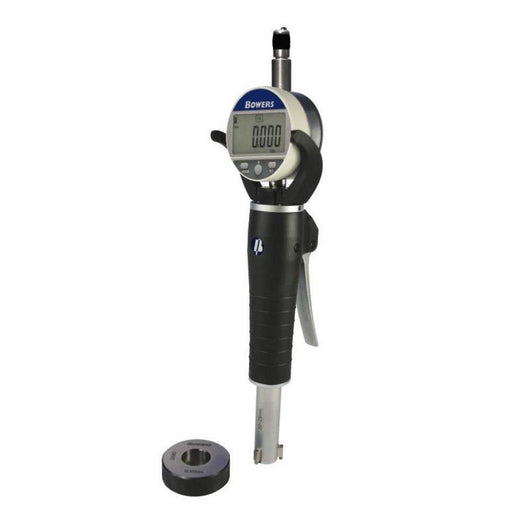

Bowers Digital Lever Bore Gauge 65-80mm XTL65M
£1,443.00 EX VAT
£1,731.60 INC VAT
Please contact us for lead times on this product
The XTL has a simple ergonomic action and can be fitted with a wide variety of analogue and digital indicators or even transducer probes. The range can be provided with IP65 rated digital indicators, rendering it resistant to coolant, water and airborne particles. A 'wireless' gauge module is also available, enabling cable free communication with remote data collectors, PCs etc.
The cost-effective new XTL boasts hardwearing extended travel carbide measuring anvils and is able to measure diameters up to 100mm.
Range - 65-80 mm
Accuracy - 0.005 mm
Depth - 80 mm
Setting Ring - 65.00 mm
Please note these images are for illustrative purposes only
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202902845 |
| Accuracy | 0.005mm |
| Data output | Yes |
| Digital analogue | Digital |
| Manufactured standard | DIN 863, part 4 |
| Measurement range | 65-80mm |
| Measurement units | Metric |
| Measuring depth imperial | 80mm |
| Measuring depth metric | 80mm |
| Mpn | XTL65M-BT |
| Product series | XTL Lever Series - Bore Gauges |
| Product sub type | 3 Point Lever/Snap-Type |
| Resolution | 0.001mm |
| Waterproof | IP65 - Water & Coolant Spray Proof |
