| Range | 9-10" |
|---|---|
| Resolution | 0.0002" |
| Measurement Units | Imperial |
| Data Output | No |
| Manufactured Standard | DIN 863, part 4 |

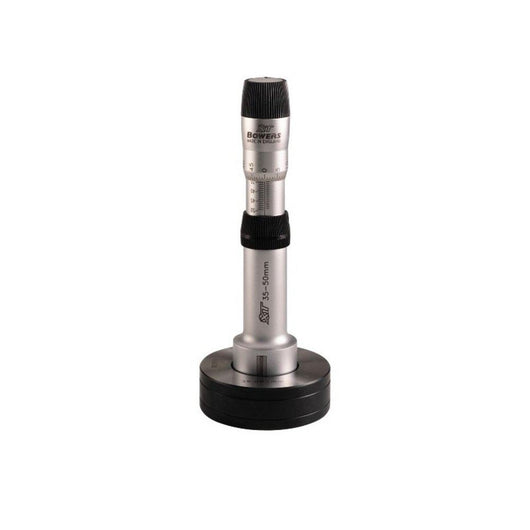

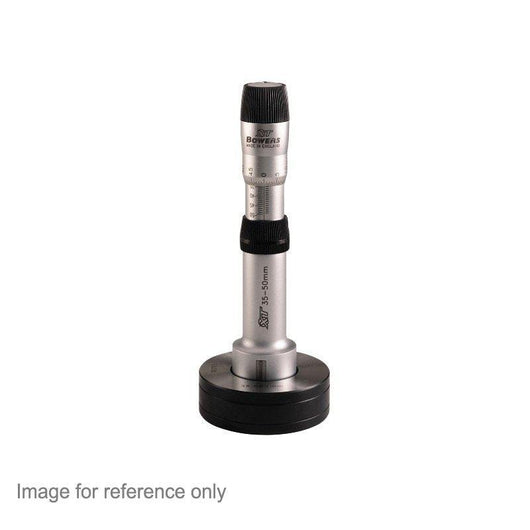

This Bowers XT Analogue Bore Gauge is an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of this advanced three point gauge ensures that exchanging measuring anvils is now unnecessary. This bore gauge has a rugged construction and easy read scale ensuring both accuracy and ease of use. XT measuring heads and setting rings are also supplied with UKAS certification.
Range - 9 - 10"
Accuracy- 0.00030"
Depth - 4.65"
Setting Ring - 1.375"
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202900940 |
| Accuracy | 0.0003" |
| Data output | No |
| Digital analogue | Anologue |
| Manufactured standard | DIN 863, part 4 |
| Measurement range | 9-10" |
| Measurement units | Imperial |
| Mpn | XTA225I |
| Product series | XTA Series - Bore Gauges |
| Product sub type | 3 Point Standard Micrometer |
| Resolution | 0.0002" |
| Waterproof | No |
