| Range | 175-200mm |
|---|---|
| Resolution | 0.005mm |
| Measurement Units | Metric |
| Data Output | No |
| Manufactured Standard | DIN 863, part 4 |

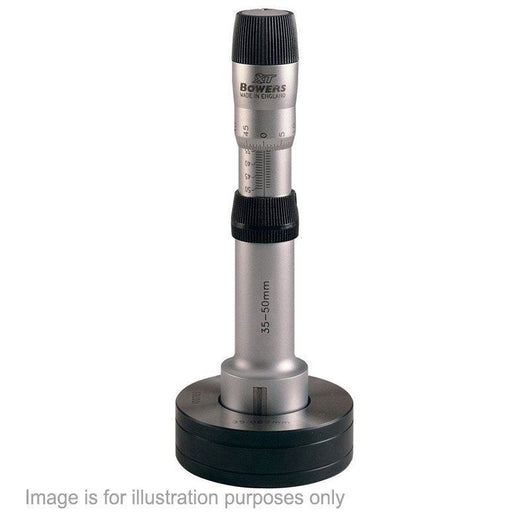

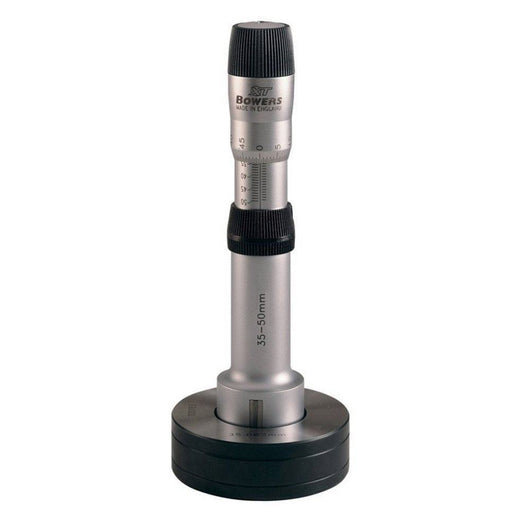

This Bowers XT Analogue Bore Gauge is an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of this advanced three point gauge ensures that exchanging measuring anvils is now unnecessary. This bore gauge has a rugged construction and easy read scale ensuring both accuracy and ease of use. XT measuring heads and setting rings are also supplied with UKAS certification.
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202900841 |
| Accuracy | 0.007mm |
| Data output | No |
| Digital analogue | Anologue |
| Manufactured standard | DIN 863, part 4 |
| Measurement range | 175-200mm |
| Measurement units | Metric |
| Measuring depth imperial | 115mm |
| Measuring depth metric | 115mm |
| Mpn | XTA175M |
| Product series | XTA Series - Bore Gauges |
| Product sub type | 3 Point Standard Micrometer |
| Resolution | 0.005mm |
| Waterproof | No |
