| Range | 1.8-2.2mm |
|---|---|
| Resolution | 0.01/0.001/0.0005mm |
| Measurement Units | Metric |
Featuring a digital readout and extremely compact overall dimensions, the MicroGauge is truly a pocket-sized instrument. The digital readout and measuring head together are about the same size and format as a ballpoint pen which represents a big advantage for those needing to measure small precision parts and who need to have their gauge with them all the time. The clear LCD display is easily set using only two buttons and results are shown with switchable 0.01/0.001/0.0005mm resolution. Data transfer is via Proximity-RS232 or Proximity-USB output. The measuring heads are equipped with spherical hard-chromed contact points and are set in appropriate setting rings. Like all Bowers bore gauging products the MicroGauge system is available as individual instruments or as full sets. All setting rings are supplied as standard with UKAS certification.
Â
Range - 1.80-2.20 mm
Range - 0.071-0.087 inch
Measuring Depth - 0.9-17 mm
Setting Ring - 2.00 mm

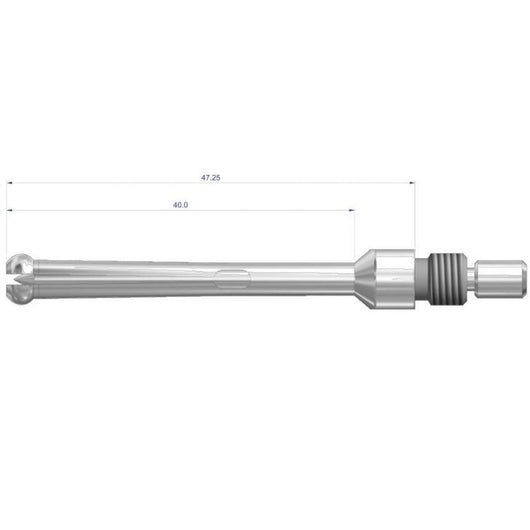

Please note these images are for illustrative purposes only
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202905884 |
| Measurement range | 1.8-2.2mm |
| Measurement units | Metric |
| Mpn | MG017W |
| Product series | MicroGauge 2 - Bore Gauges |
| Product sub type | Measuring Head |
| Resolution | 0.01/0.001/0.0005mm |
| Waterproof | No |
