| Range | 6-10mm (0.25-0.4") |
|---|---|
| Resolution | 0.001mm |
| Measurement Units | Metric/Imperial |
| Data Output | Yes |
| Manufactured Standard | DIN 863, part 4 |

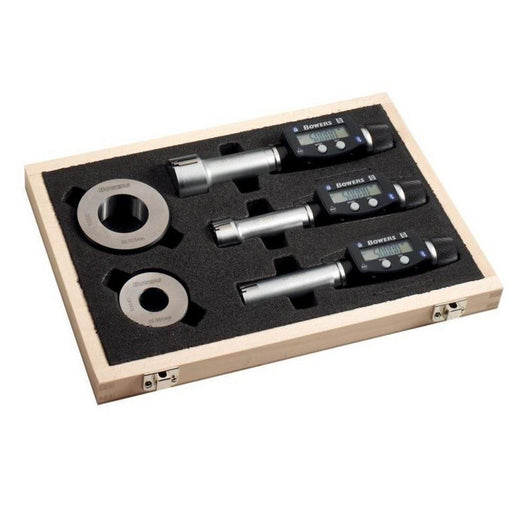

This Bowers' XTL digital internal micrometer offers a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of this XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines slots, grooves, deep-holes and many more applications are available.
Bore gauges manufactured according to DIN 863, part 4
Range 6mm/10mm
with 2 display units
Resolution 0.001mm (0.0005")
IP67 Electronics
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202901725 |
| Battery type | CR2032 |
| Data output | Yes |
| Digital analogue | Digital |
| Manufactured standard | DIN 863, part 4 |
| Measurement range | 6-10mm (0.25-0.4") |
| Measurement units | Metric/Imperial |
| Mpn | SXTD3U-BT |
| Product series | XT3 Series - Bore Gauges |
| Product sub type | 3 Point Standard Micrometer |
| Resolution | 0.001mm |
| Waterproof | IP67 - Water & Coolant Immersion Proof |
