| Range | 2-2.5mm |
|---|---|
| Resolution | 0.001mm |
| Measurement Units | Metric |
| Data Output | Yes |
| Manufactured Standard | DIN 863, part 4 |

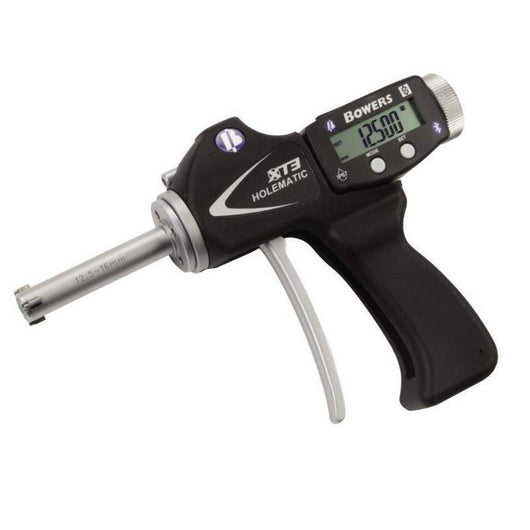

This Bowers' XT3-BT Holematic offers an ergonomic design with a larger and clearer LCD display, along with IP67 electronics protection, proximity output with built-in Bluetooth; allowing bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of this bore gauge means that special heads can also be manufactured to accommodate users most awkward measuring problems.
Range - 2-2.5mm
Accuracy - 0.004
Depth - 9.0mm
Setting Ring - 2.50mm
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202902005 |
| Accuracy | 0.004mm |
| Battery type | CR2032 |
| Data output | Yes |
| Digital analogue | Digital |
| Manufactured standard | DIN 863, part 4 |
| Measurement range | 2-2.5mm |
| Measurement units | Metric |
| Measuring depth imperial | 9mm |
| Measuring depth metric | 9mm |
| Mpn | XTH1M-BT |
| Product series | XT3 Series - Bore Gauges |
| Product sub type | 3 Point Pistol Grip Micrometer |
| Resolution | 0.001mm |
| Waterproof | IP67 - Water & Coolant Immersion Proof |
