| Range | 300-325, 475-500mm (11.8-12.8", 18.8"-19.8") |
|---|---|
| Resolution | 0.01/0.001mm |
| Measurement Units | Metric/Imperial |
| Data Output | Yes |

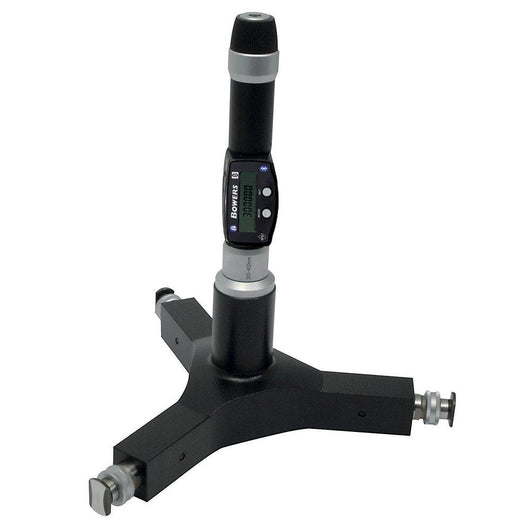

The Bowers XT500 large diameter 3-point bore-gauge has been designed specifically for the measurement of internal diameters. The newly designed constant-force digital readout ensures that the measuring pressure remains constant throughout the measurement whilst radiused measuring anvils provide optimum centralisation in the part.
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202902685 |
| Accuracy | 0.015mm |
| Battery type | CR2032 |
| Data output | Yes |
| Digital analogue | Digital |
| Measurement range | 300-325, 475-500mm (11.8-12.8", 18.8"-19.8") |
| Measurement units | Metric/Imperial |
| Mpn | XT5008M-BT |
| Product series | XT500 Series - Bore Gauges |
| Product sub type | 3 Point Standard Micrometer |
| Repeatability | 0.003mm |
| Resolution | 0.01/0.001mm |
| Waterproof | IP67 - Water & Coolant Immersion Proof |
