The Easson ES-12B is a versatile and high-performance 3 axis DRO console designed for use with both milling machines and lathes. Featuring an intuitive 7" full-colour graphical LCD display, this digital readout provides powerful capabilities while remaining user-friendly, making it suitable for professionals and workshop users alike.

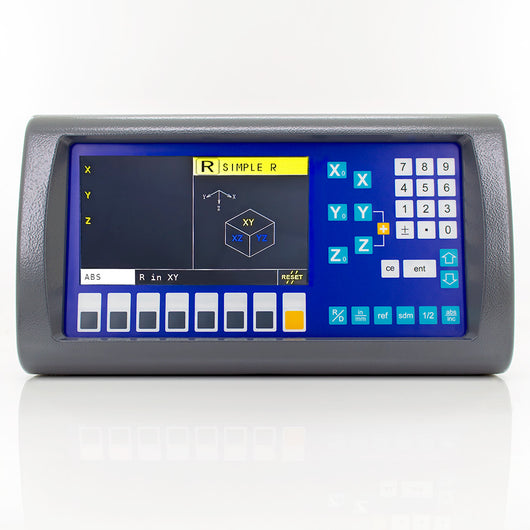

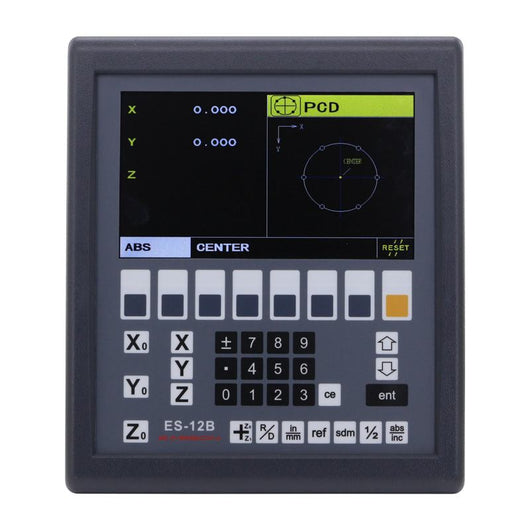

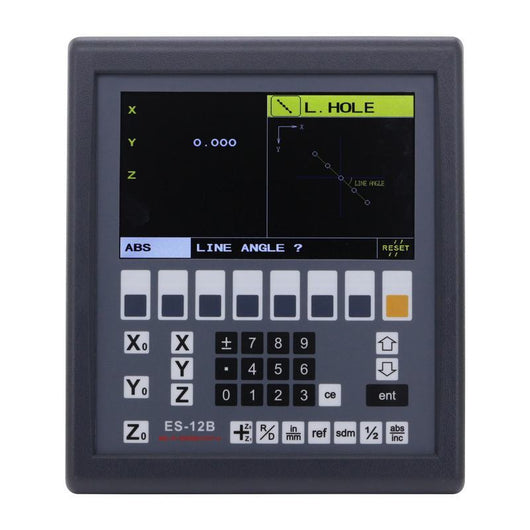

With step-by-step graphical guidance and real-time visualisation, the ES-12B simplifies complex machining functions such as PCD (Pitch Circle Diameter), Line of Holes, and Arc Contour. Operators can preview operations on-screen before executing, reducing error and improving accuracy.

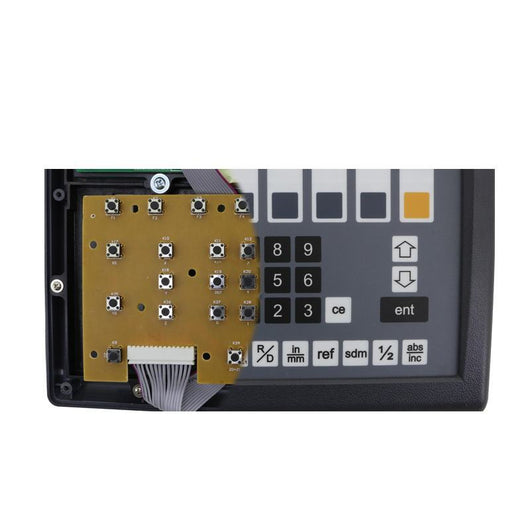

Built for durability, the ES-12B features a wipe-clean front panel with reliable PCB-mounted switches. The included mounting arm offers practical and convenient positioning on a range of machines.
The console is compatible with a wide range of linear encoders, including both Easson and M-DRO models, and supports standard 5 micron and 1 micron resolution inputs. Interfaces are available to combine axes or adapt inputs to suit other manufacturers’ systems.

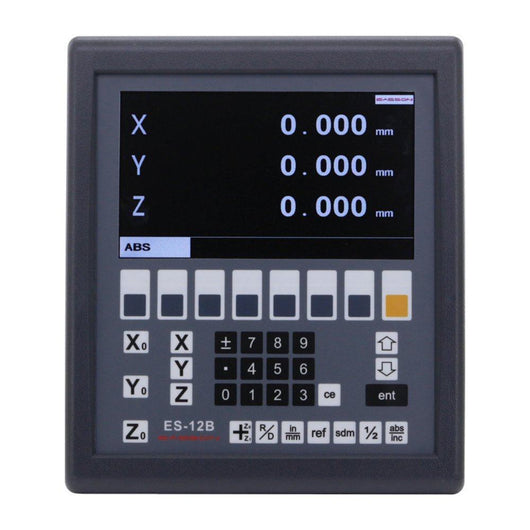

3-axis digital readout console suitable for milling and turning applications

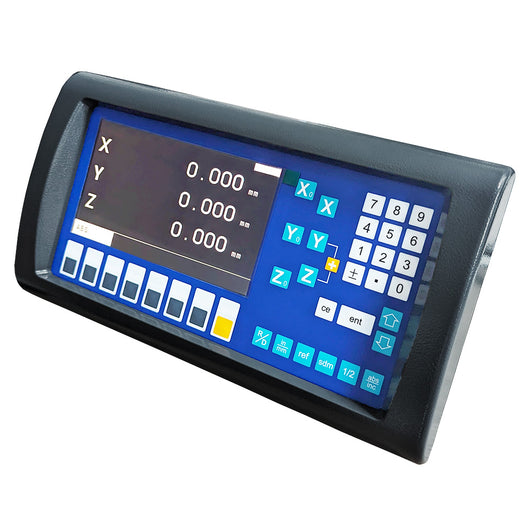

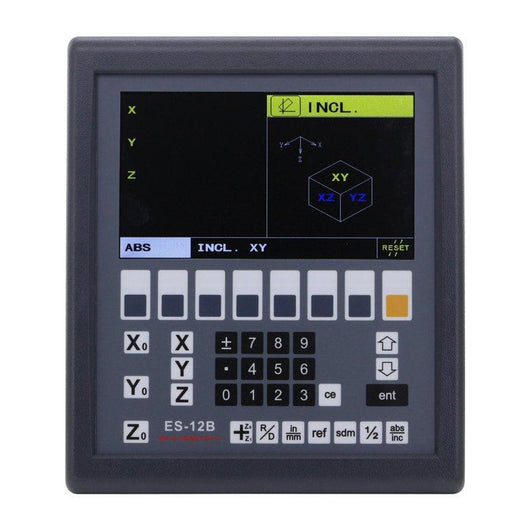

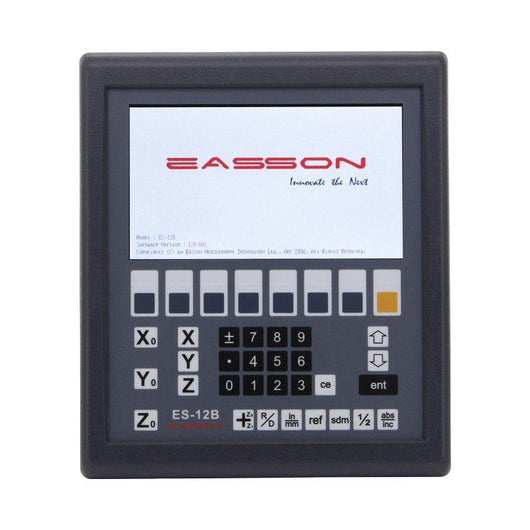

7" high-resolution colour LCD display with several pre-set display themes

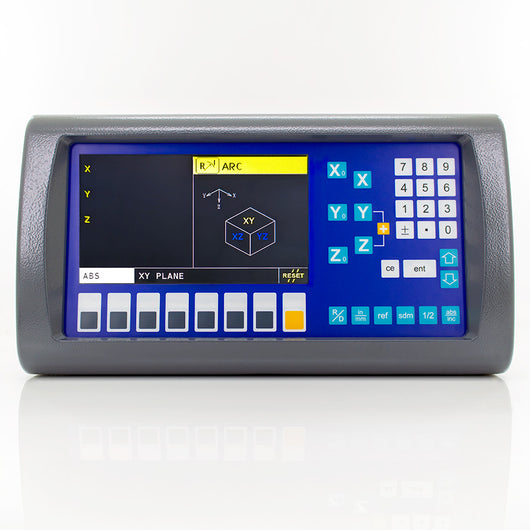

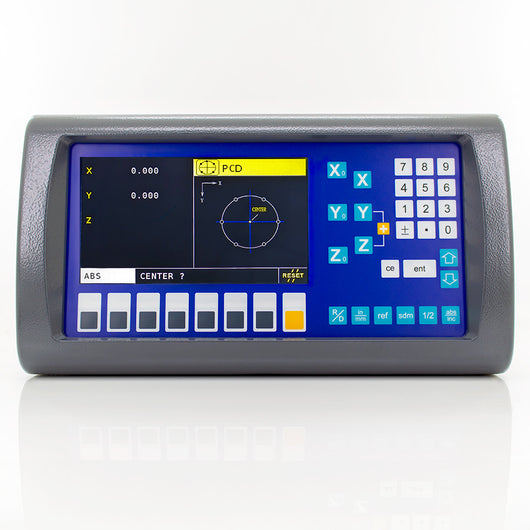

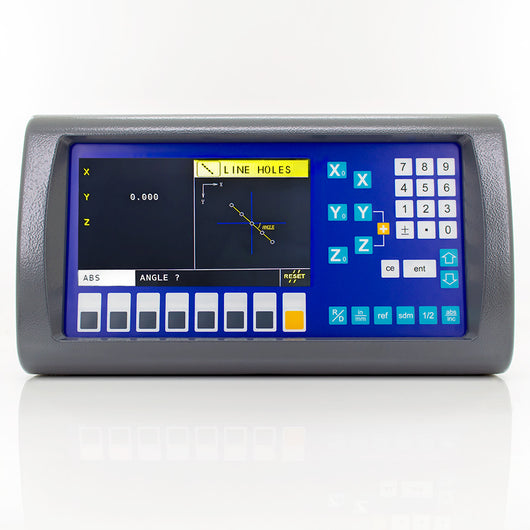

Graphical interface with on-screen previews for functions like PCD, Line of Holes, and Arc Contour
199 zero memory storage for saved positions
Switchable radius/diameter display
Durable ABS housing with a wipe-clean overlay for workshop environments

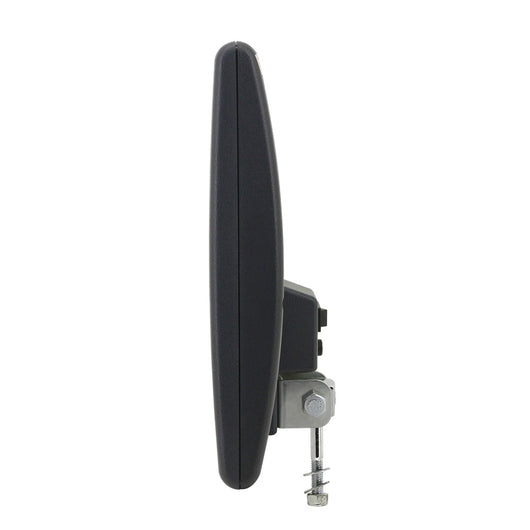

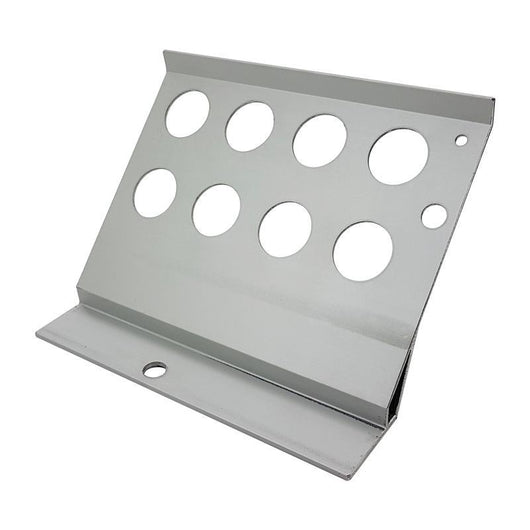

Supplied with a mounting arm for flexible installation
Compatible with a wide range of linear encoder types

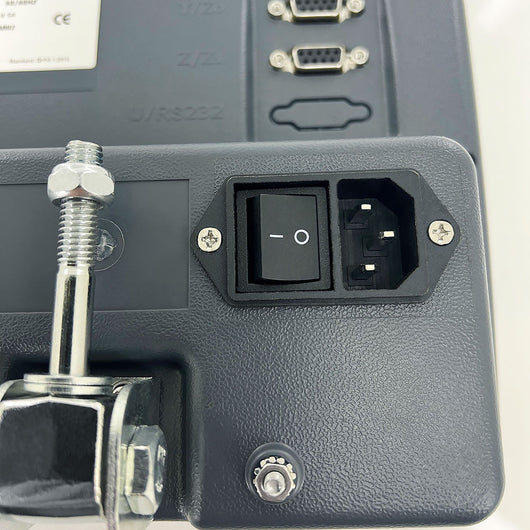

Voltage range: 110V to 220V AC ±15%, frequency 50/60Hz
Interfaces available for axis summing or output conversion
⚠ Important: Ensure correct voltage selection before powering on. Incorrect settings may cause internal damage.
| Feature | Specification |
|---|---|
| Number of Inputs | 3 Axis |
| Display Type | 7" Colour LCD |
| Housing Material | ABS |
| Graphical Functions | PCD, Line of Holes, Arc Contour |
| Zero Memory | 199 Positions |
| Display Options | Multiple pre-set colour themes |
| Input Type | Linear Encoders |
| Supported Resolutions | 5 micron, 1 micron |
| Compatible Encoders | Easson GS30, GS10; M-DRO MD40, MD60, MD80, MG-05, MG-01 |
| Power Supply | 110V–220V AC ±15%, 50/60Hz |
| Mounting | Supplied with mounting arm |
| Additional Interfaces | Available for axis combining and input/output compatibility adjustments |
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5055396160604 |
