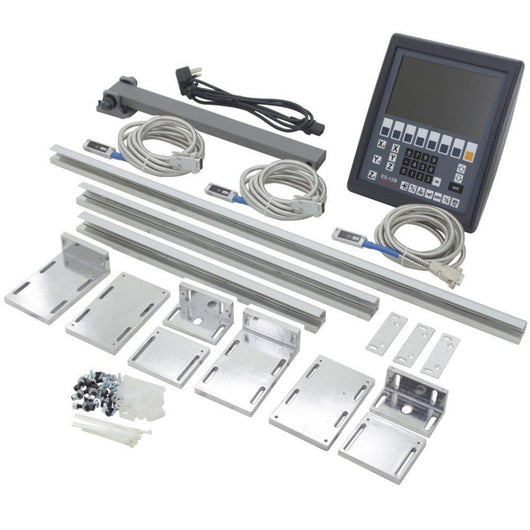

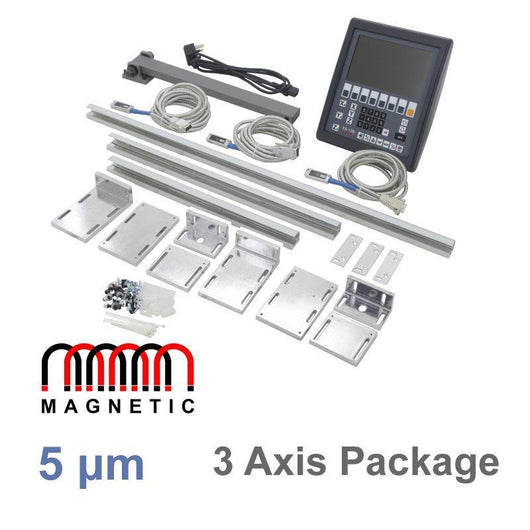

This complete 3 Axis Digital Readout (DRO) package is ideal for a wide range of machines, including milling machines up to standard Bridgeport size and lathes with up to 30" between centres. The system includes everything needed for installation and operation, making it an excellent solution for both professional and enthusiast machinists.

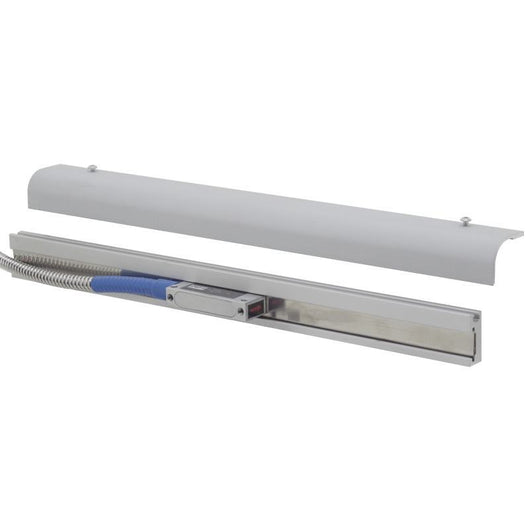

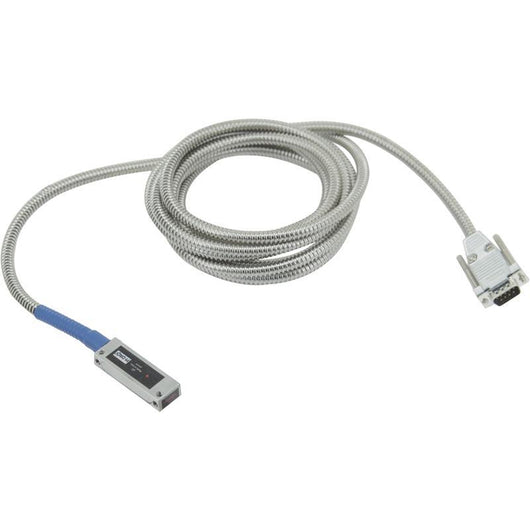

The kit features M-DRO magnetic encoders, known for their compact profile, making them particularly suitable for tight mounting spaces such as benchtop mill tables and lathe cross slides. Each encoder—supplied with 350mm, 450mm, and 750mm reading lengths—can be cut to fit the machine, ensuring maximum compatibility.
A universal bracket kit is included, featuring angle and flat plate brackets slotted for easy and flexible mounting. The system operates on a non-contact basis, with the encoder reading heads being fully IP67 sealed, offering high resistance to oil, dust, and cutting fluid contamination.

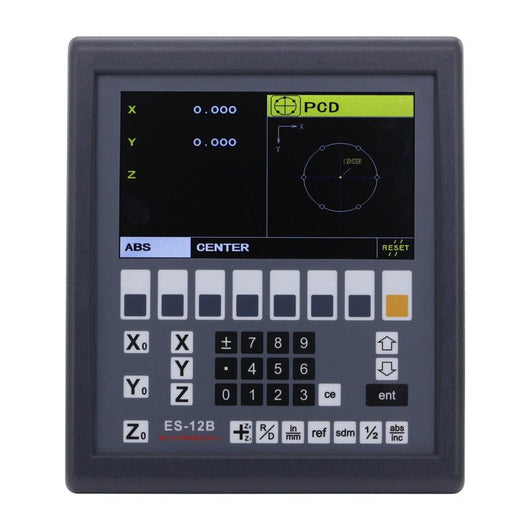

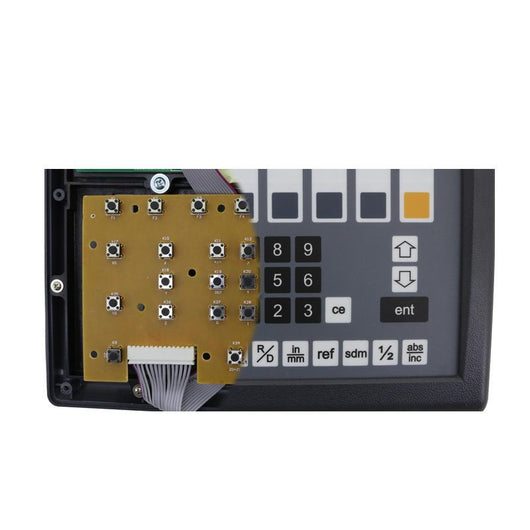

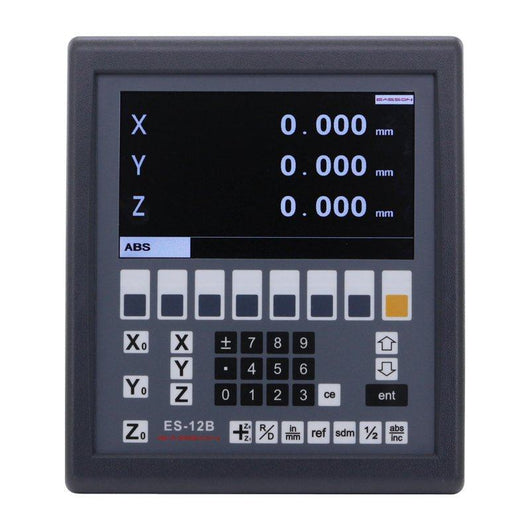

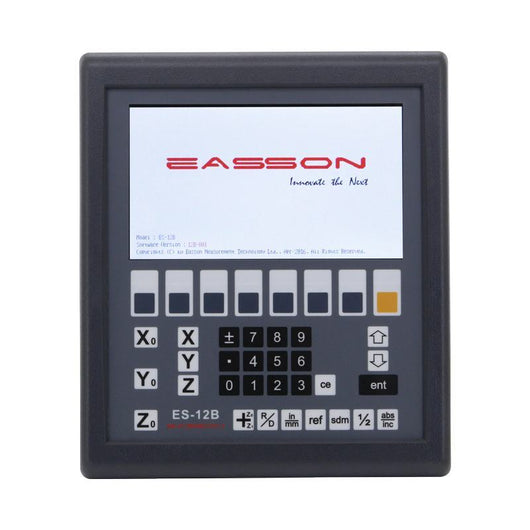

This package is paired with the advanced Easson ES-12B DRO Console, which offers graphical, step-by-step programming for features like PCD, line of holes, and arc contouring. Its 7" full-colour display is easy to read, with multiple display themes to suit operator preference. The console also features a wipe-clean front panel with durable PCB-mounted switches.
Complete 3 axis DRO package suitable for mills and lathes
Designed for machines up to standard Bridgeport size or lathes with up to 30" between centres
Compact, non-contact IP67-rated magnetic encoders
Encoder reading lengths: 350mm, 450mm, 750mm – easily cut to size
Universal bracket kit included for flexible installation
Easson ES-12B Console with step-by-step on-screen guidance
7" colour display with multiple theme options
Simple and intuitive interface for functions such as PCD, arc contour, and line of holes
UK-based support and shipping from Machine-DRO
Feature | Specification |
---|---|
Number of Axes | 3 |
Encoder Type | Magnetic (non-contact) |
Encoder Reading Lengths | 350mm, 450mm, 750mm (cut to fit) |
Encoder Sealing | IP67 sealed reading heads |
Console Model | Easson ES-12B |
Console Display | 7" colour graphical display |
Display Functions | PCD, Line of Holes, Arc Contour, mm/inch conversion, Zero setting |
Bracket Kit | Universal angle and flat plate brackets, slotted for adjustment |
Installation | Full kit with all hardware, designed for easy setup |
Application Compatibility | Mills (up to Bridgeport size), Lathes (up to 30" centres) |
Power Supply | Supplied with power adapter |
Support | UK technical support and optional on-site install (UK only) |
Specification | Details |
---|---|
Barcode (ISBN, UPC, GTIN, etc.) | 5055396162141 |
