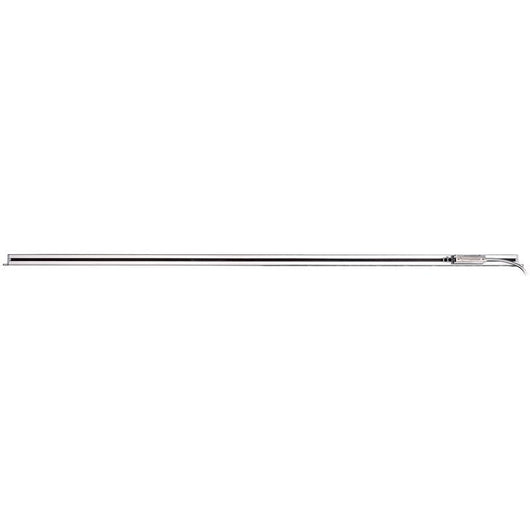

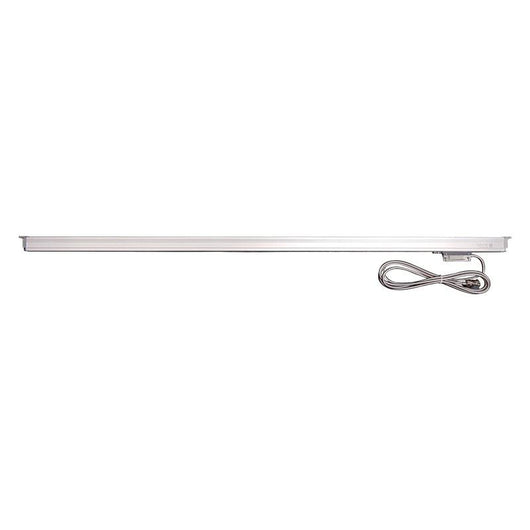

M-DRO 2600mm (102 23/64 inch) Reading Length Linear Optical Encoder with 5um Resolution

Product Discontinued. Please contact us for alternatives.

• The M-DRO MD80 precision optical glass grated scale with 5 micron resolution.

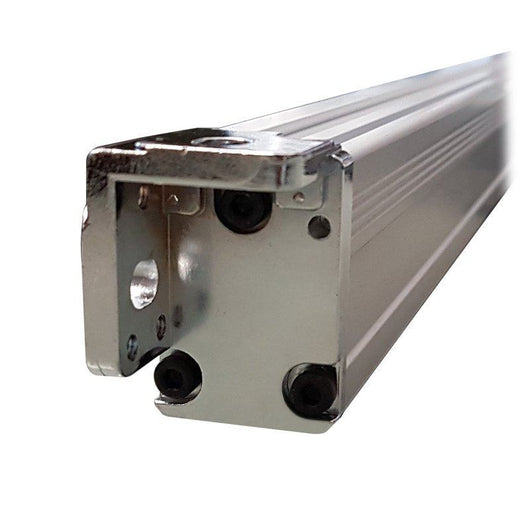

• Comprised of a rigid aluminium extrusion with slotted end blocks for simple adjustable mounting.

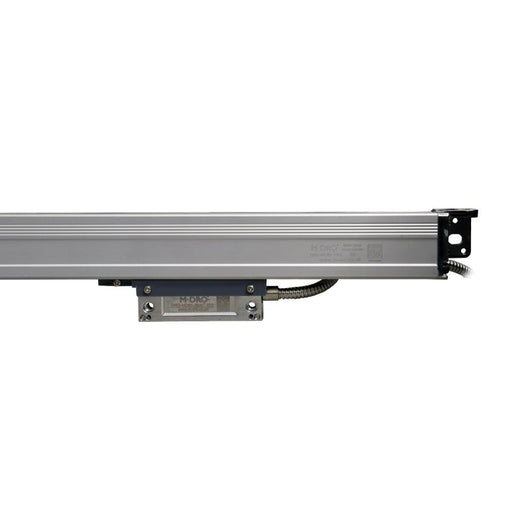

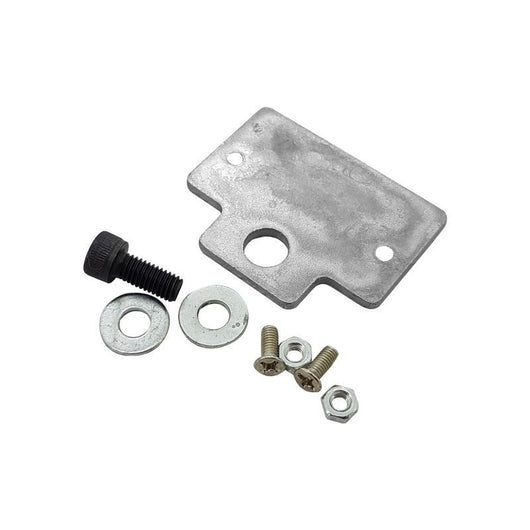

• The reading head offers several mounting options including easy attachment to brackets and additional mounting hardware.
• Optional protective covers are available, a single part cover that fits over the scale or a two part cover with a mounting spar, for simple installation on a non-machined face.

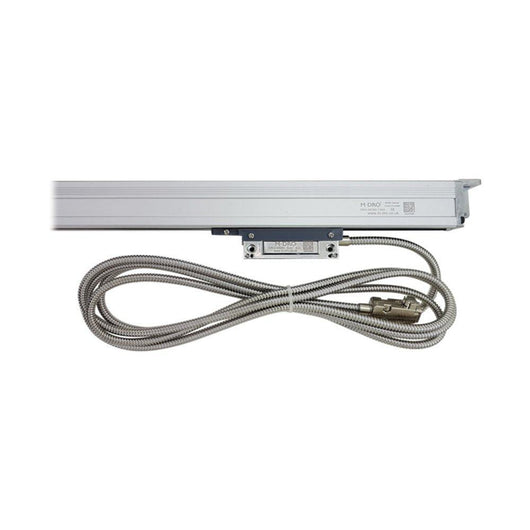

• Robust and flexible stainless steel armoured cable offering a high level of protection.
• Each encoder and reading head is laser etched with model and unique serial number.
• Supplied with a calibration certificate.
• Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment.
• Resolution - 0.005mm (0.0002 inch)
• Encoder Type - Optical

M-DRO a leading brand of positional readouts and encoder technologies, featuring both optical and magnetic sensor types for a wide range of applications. Supported by a UK design and development engineering team, with many years' experience in the measurement and automation industry.
