m dro eh 05 1050mm 42 reading length magnetic linear encoder

Order in the next [totalHours] hrs %M mins and receive it between and (UK Addresses) (bank holidays may vary)

In Stock

SKU: DRO-EH-05-1050

M-DRO EH-05 - 1050mm (42") Reading Length Magnetic Linear Encoder

£168.42 EX VAT

£202.10 INC VAT

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

Ultra compact size makes the EH-05 ideal for limited space mounting, including the lathe cross or compound slide and milling machine quill

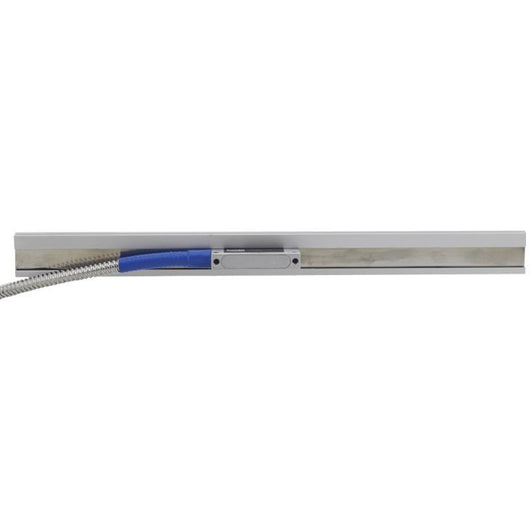

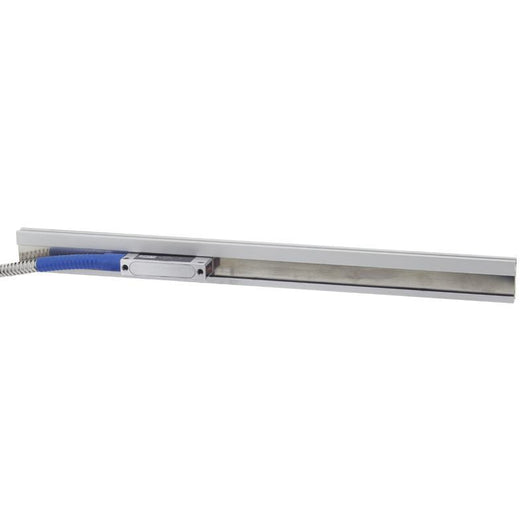

A non contact system with fully sealed encapsulated reading head. Highly resistant to cutting oil and contamination

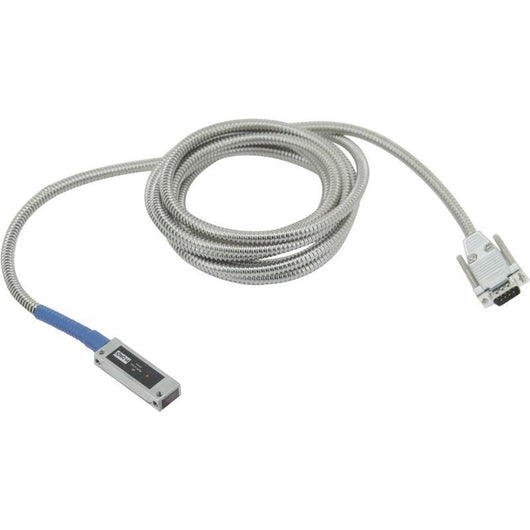

Fitted with a flexible armoured cable and connector
Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment

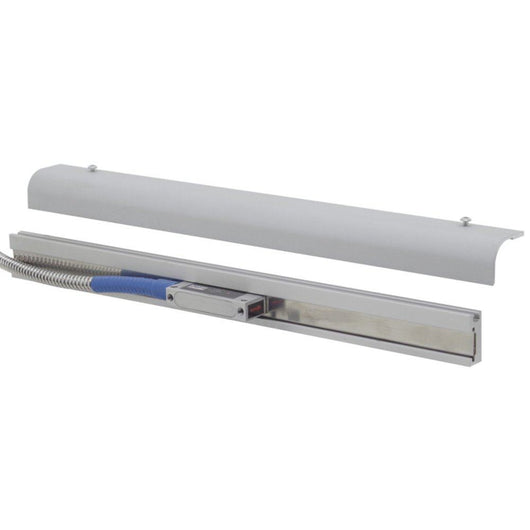

The rigid support profile has a recessed slot for the tape, with a stainless steel cover strip that slides in over the top to fully cover the tape
The profile is pre-drilled with mounting holes. Additional fixings can also be drilled as required
The profile can easily be cut to length to best suit the install requirements
For compatible display consoles please check the display console compatibility guide below
Please feel free to contact our technical staff for assistance

Machine-DRO History - A division of Allendale Electronics, a family run British company founded in 2004. Our roots are firmly based in the UK, with a head office, engineering and inspection department at our works in Hoddesdon, Hertfordshire. We pride ourselves on being a measuring tool specialists offering tools, services, advice and expertise to our end customers and international distributor network

Key Specifications

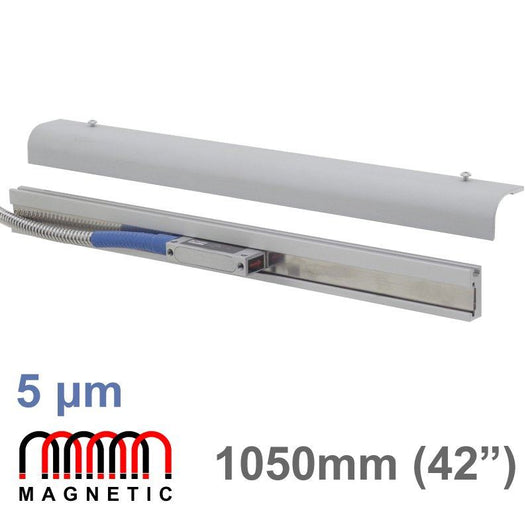

Reading Length - 1050mm (42")
Resolution - 0.005mm
Encoder Type - Magnetic
Encoder Output - TTL (A, B and Z) Quadrature
Cable Type - Flexible Armoured
Cable Length - 3 Metres
Protection - IP67
