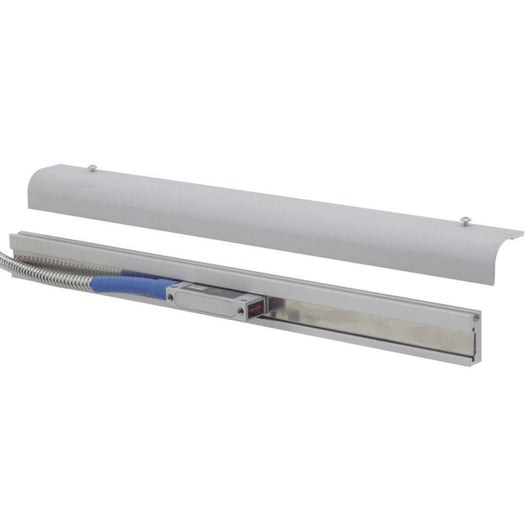

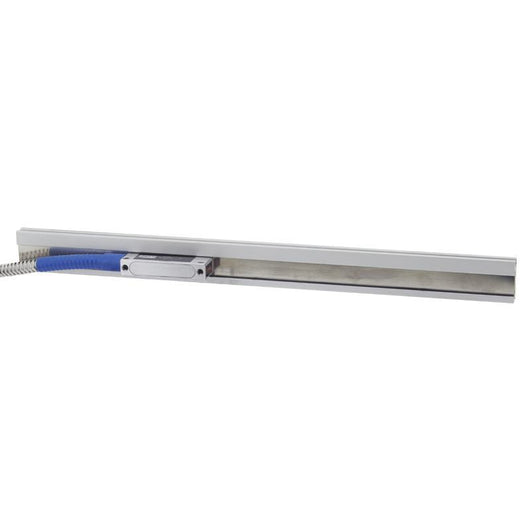

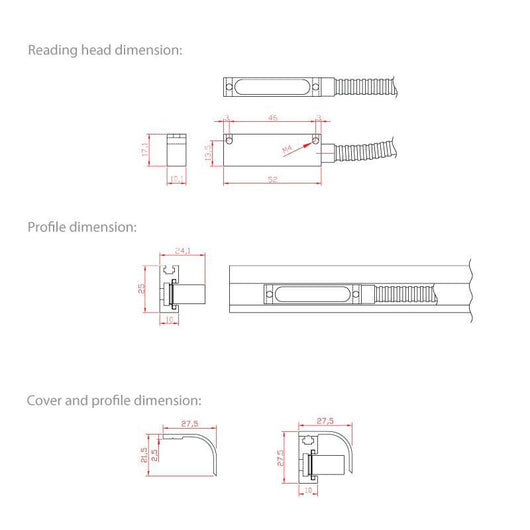

The EH-05 Magnetic Encoder is designed for high-precision applications where space is limited. Its ultra-compact profile is ideal for retrofitting to the lathe cross or compound slide, or the quill of a milling machine. The non-contact magnetic sensing technology ensures consistent accuracy without mechanical wear, making it highly durable in oil- and swarf-rich environments.

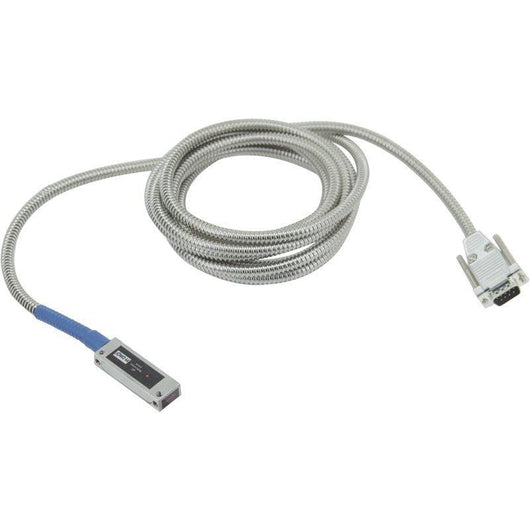

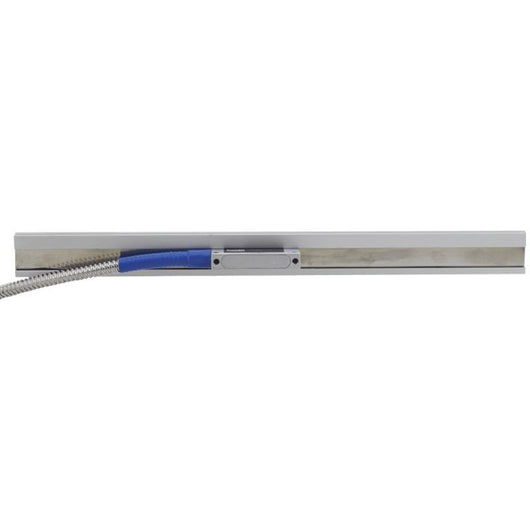

Encased in a fully sealed housing, the encoder head is protected to IP67, offering excellent resistance to coolant, dust, and debris. The system comes complete with a rigid support profile, a stainless steel cover strip, and a flexible armoured 3-metre cable for long-lasting performance in workshop conditions.
Key Features:
Ultra-compact design – suitable for confined machine tool spaces
Non-contact magnetic technology – long life, no mechanical wear
Fully sealed, IP67-rated encoder head – resistant to oil and contaminants

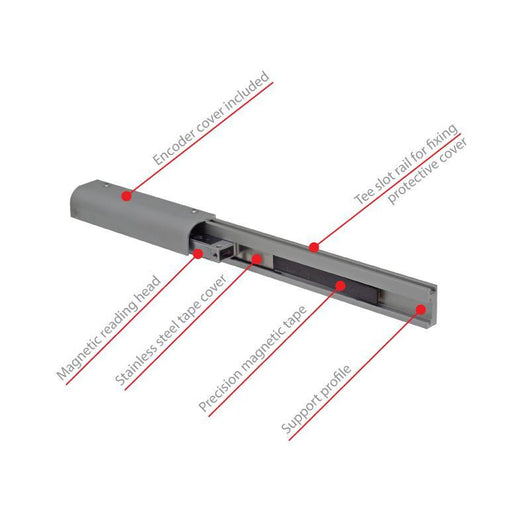

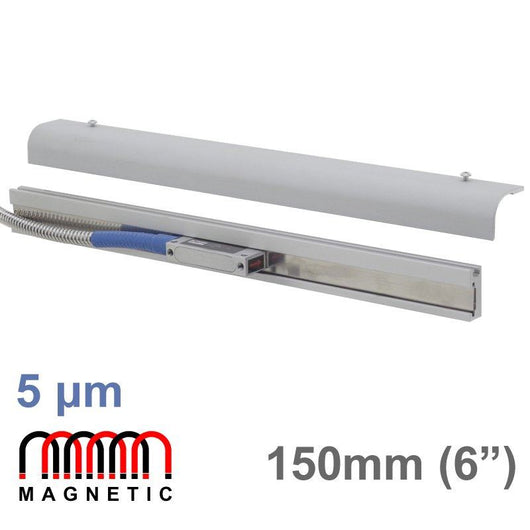

Pre-drilled rigid mounting profile with stainless steel cover
Flexible armoured cable – 3 metres long, ideal for industrial routing
Optional interfaces available – combine axis signals or convert output
Can be cut to length – for optimal fit during installation
Made in the UK – quality manufacturing and local support
| Feature | Specification |
|---|---|
| Reading Length | 150mm (6") |
| Resolution | 0.005mm |
| Encoder Type | Magnetic |
| Output Format | TTL Quadrature (A, B, Z channels) |
| Protection Rating | IP67 |
| Cable Type | Flexible armoured |
| Cable Length | 3 metres |
| Mounting Profile | Pre-drilled with removable cover strip |
| Installation | Profile can be cut to length |
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5055396132861 |
