The EHC Series Compact Magnetic Encoder is designed for space-constrained environments where precision and durability are critical. Ideal for lathe cross or compound slide and milling machine quill applications, this non-contact system ensures long-lasting performance with minimal wear. The fully sealed, encapsulated reading head offers protection from cutting oils, debris, and contamination, ensuring reliable readings in harsh environments.

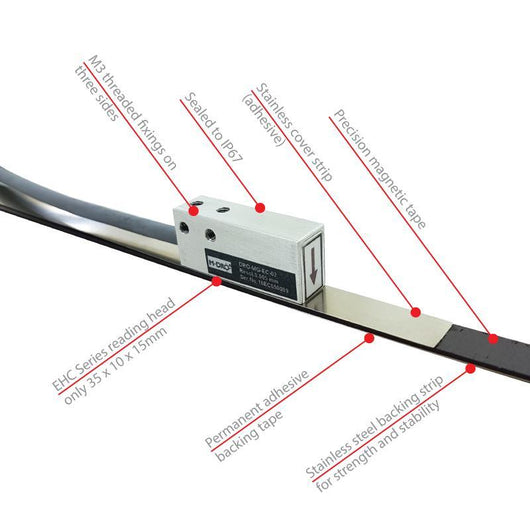

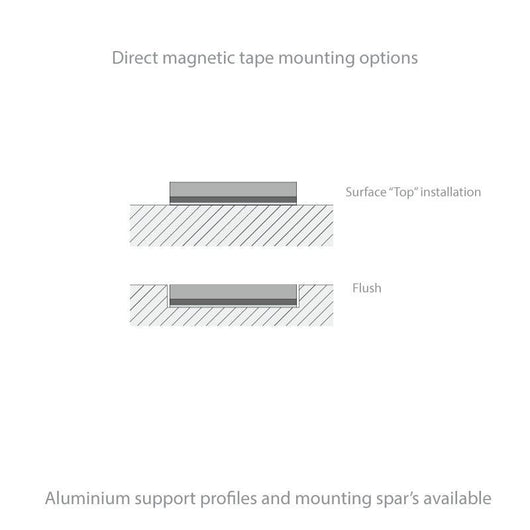

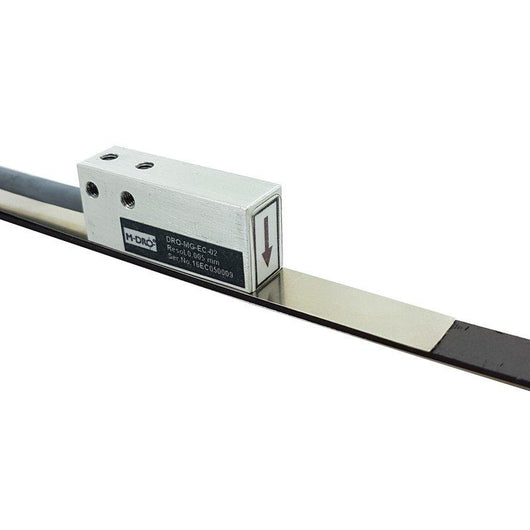

The magnetic tape can be mounted directly to the surface using the provided adhesive tape, or it can be flush-mounted in a 10mm wide x 2mm slot. The reading head is exceptionally compact, measuring just 35mm long x 10mm wide x 15mm high, making it suitable for limited-space installations.
This versatile system offers flexible installation and additional options for combining axis outputs or converting signals to suit other manufacturers' equipment.
Compact design - ideal for tight installations such as lathe cross slides and milling quills
Non-contact magnetic sensing - extends lifespan with minimal mechanical wear
Fully sealed and encapsulated reading head - resistant to cutting oils and contaminants

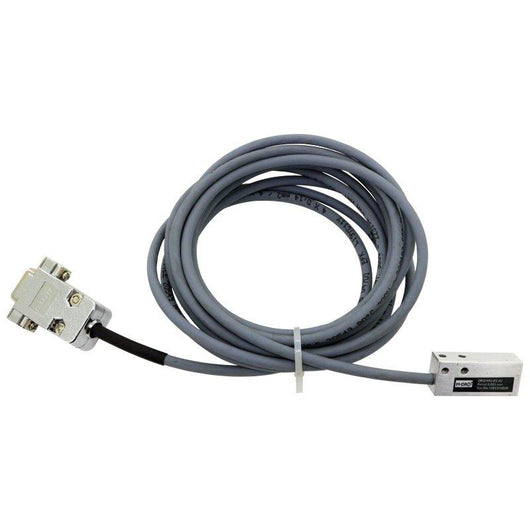

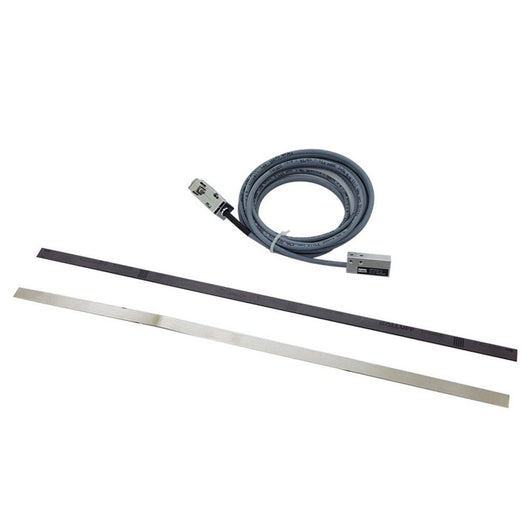

Flexible cable and connector - ensures robust and long-lasting connections
Magnetic tape mounting - can be directly applied with adhesive tape or mounted flush in a 10mm x 2mm slot
Compact reading head - only 35mm x 10mm x 15mm for installations with limited space
Resolution of 0.005mm - high precision for accurate measurements
Made in the UK - designed and developed by experts in the field
| Feature | Specification |
|---|---|
| Resolution | 0.005mm (0.0002 inches) |
| Encoder Type | Magnetic |
| Mounting Options | Adhesive tape (direct) or flush mounting |

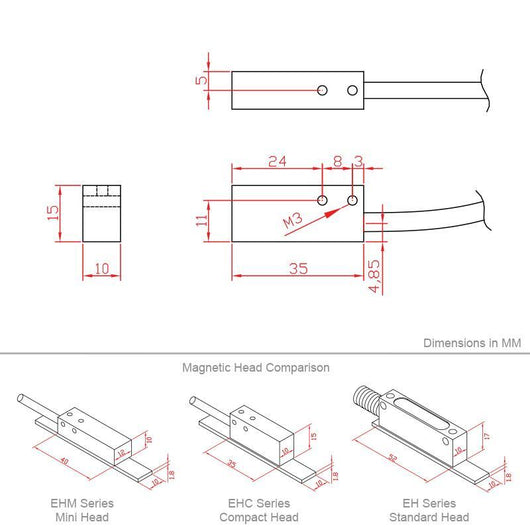

| Reading Head Dimensions | 35mm long x 10mm wide x 15mm high |
| Magnetic Tape Length | Customisable to installation requirements |
| Cable Type | Flexible |
| Protection | Fully sealed, encapsulated reading head |
| Installation Flexibility | Additional hardware and support profiles available |
| Compatibility | Can interface with other manufacturer's equipment |
