In Stock
SKU: DRO-EHMT-05-360

M-DRO EHM Series Mini Head with 360mm (14 11/64 inch) Reading Length Magnetic Tape Encoder


£152.51

£183.01 INC VAT

Add to Wishlist
Order in the next [totalHours] hrs %M mins and receive it between and (UK Addresses) (bank holidays may vary)

Checkout With

apple paygoogle paymasterpaypalvisadiscoverdiners clubmaestrounionpayshopify pay
Description

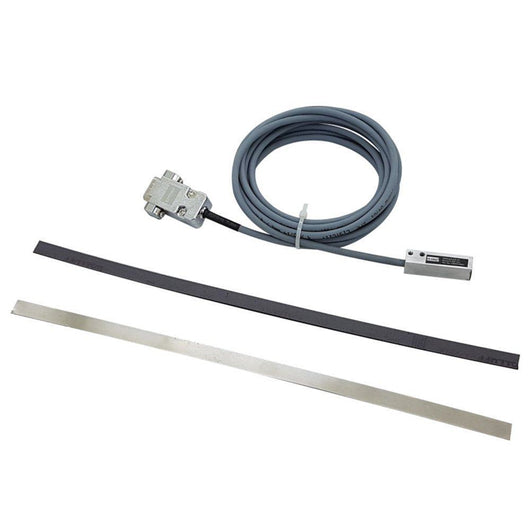

  • The EHM series mini magnetic head and linear magnetic tape encoder is ideal for very limited space mounting, including a lathe compound slide and milling machine quill

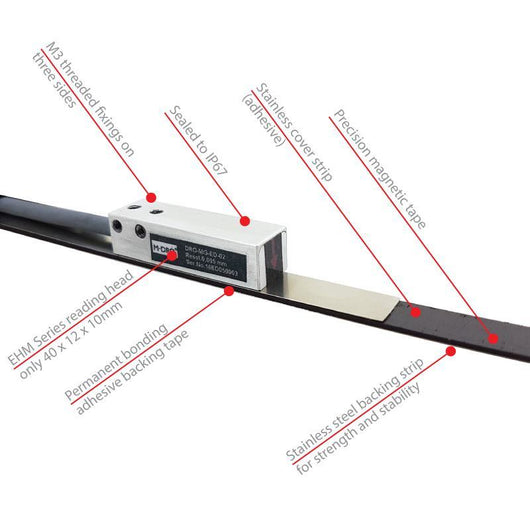

  • A non contact system with fully sealed encapsulated reading head. Highly resistant to cutting oil and contamination

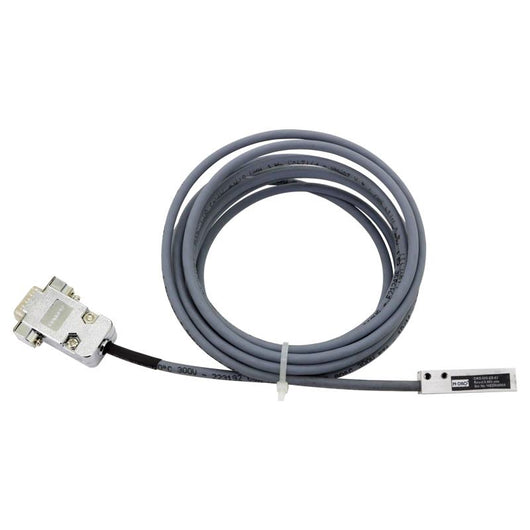

  • Fitted with a flexible cable and 9 way d type connector. Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment

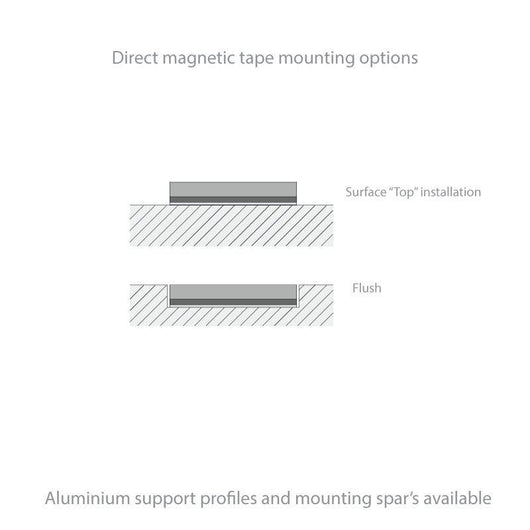

  • The magnetic tape can mounted directly to the surface via the fitted adhesive tape.
  • Additional mounting hardware, backing spars and support profiles are also available

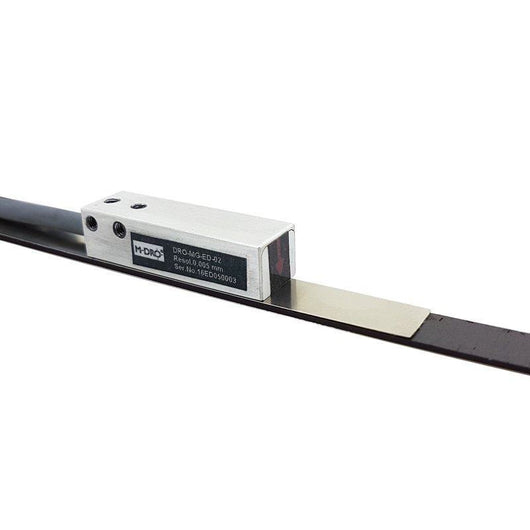

  • Mini reading head is only 40mm long x 12mm wide x 12mm high. Reading head part number DRO-MG-EH-05M
  • The magnetic tape and cover strip can easily be cut to length to best suit the install requirements.
  • Please feel free to contact our technical staff for assistance
  • Resolution - 0.005mm (0.0002 inch)
  • Encoder Type - Magnetic

M-DRO a leading brand of positional readouts and encoder technologies, featuring both optical and magnetic sensor types for a wide range of applications. Supported by a UK design and development engineering team, with many years' experience in the measurement and automation industry.


Key Specifications

Output signal - TTL quadrature

Cable length - 3 Metres

Protection class - IP67

Specs & Data Sheets

Product Specifications

Specification Details
Barcode (ISBN, UPC, GTIN, etc.) 5056202934082
