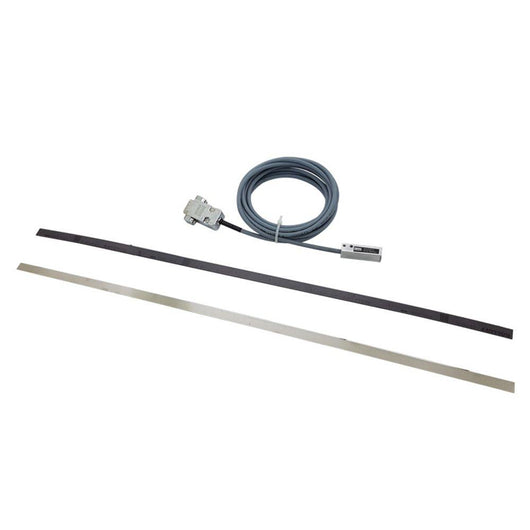

M-DRO EHM Series Mini Head with 860mm (33 55/64 inch) Reading Length Magnetic Tape Encoder

• The EHM series mini magnetic head and linear magnetic tape encoder is ideal for very limited space mounting, including a lathe compound slide and milling machine quill

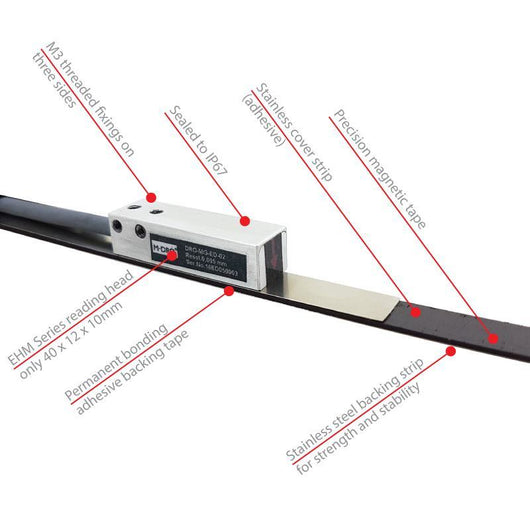

• A non contact system with fully sealed encapsulated reading head. Highly resistant to cutting oil and contamination

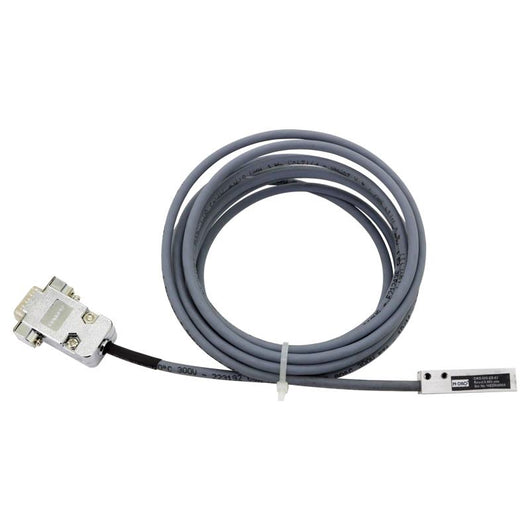

• Fitted with a flexible cable and 9 way d type connector. Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment

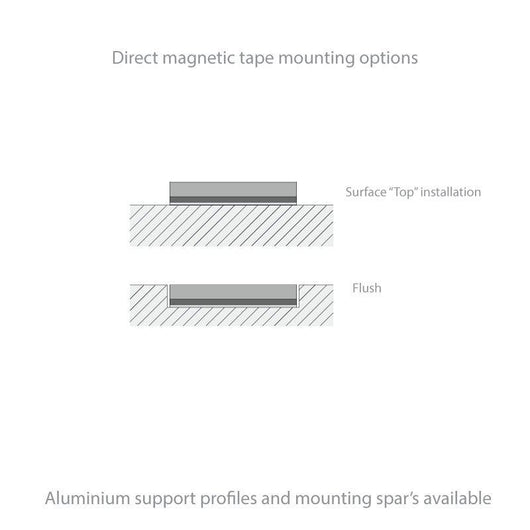

• The magnetic tape can mounted directly to the surface via the fitted adhesive tape.
• Additional mounting hardware, backing spars and support profiles are also available

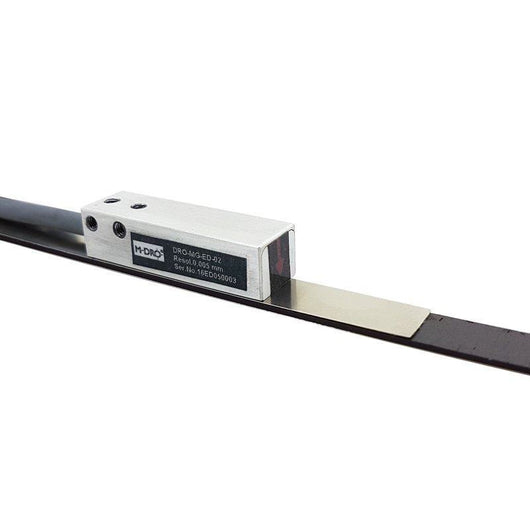

• Mini reading head is only 40mm long x 12mm wide x 12mm high. Reading head part number DRO-MG-EH-05M
• The magnetic tape and cover strip can easily be cut to length to best suit the install requirements.
• Please feel free to contact our technical staff for assistance
• Resolution - 0.005mm (0.0002 inch)
• Encoder Type - Magnetic

M-DRO a leading brand of positional readouts and encoder technologies, featuring both optical and magnetic sensor types for a wide range of applications. Supported by a UK design and development engineering team, with many years' experience in the measurement and automation industry.

Key Specifications

Output signal - TTL quadrature

Cable length - 3 Metres

Protection class - IP67
