M-DRO Linear Encoder Summing Interface
£68.29
EX VAT
£81.95
INC VAT

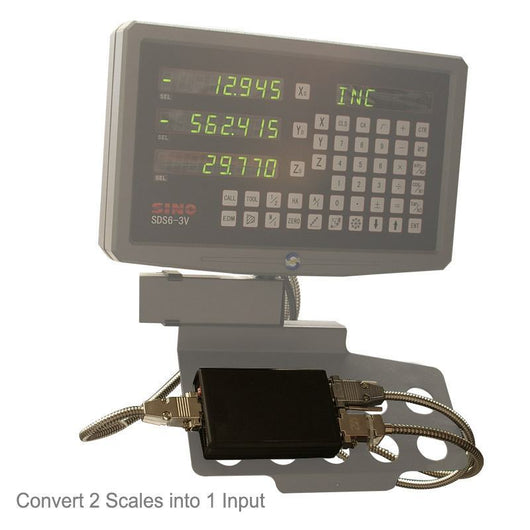

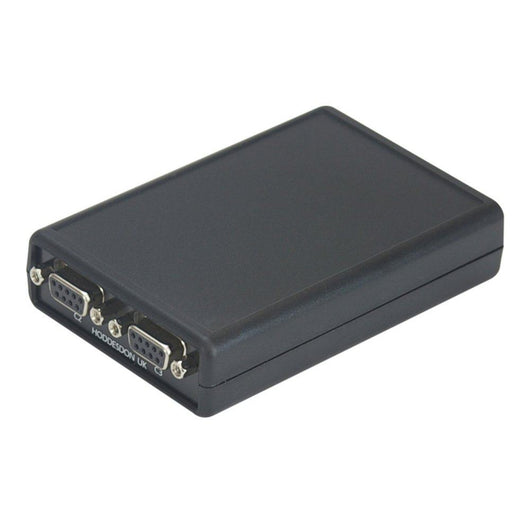

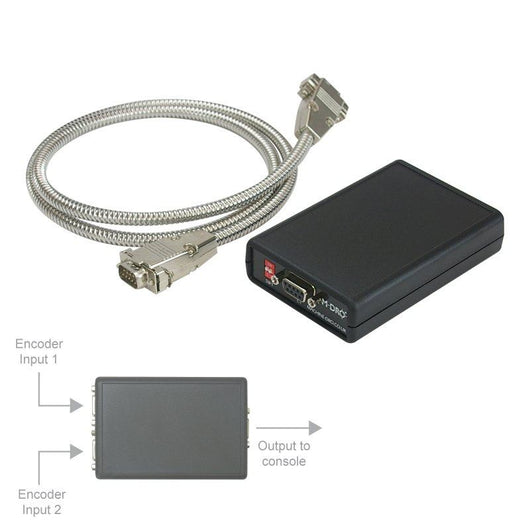

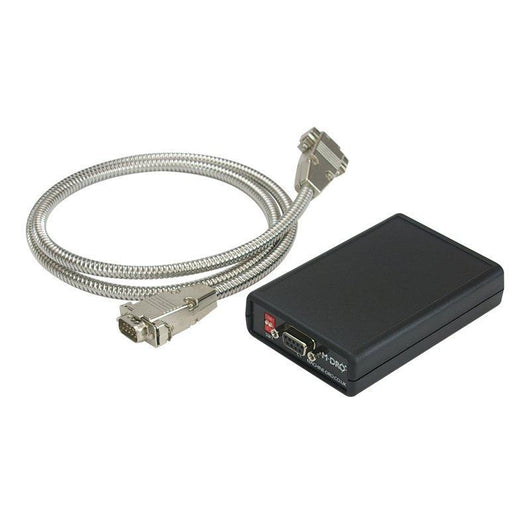

The DRO-INT-SDIFF interface is an intelligent signal processor that combines the outputs of two quadrature encoders into a single quadrature signal, either by adding or subtracting the encoder inputs. Ideal for applications where precise differential measurement is required, this interface ensures your Digital Readout (DRO) system reflects accurate positional data across combined axes.

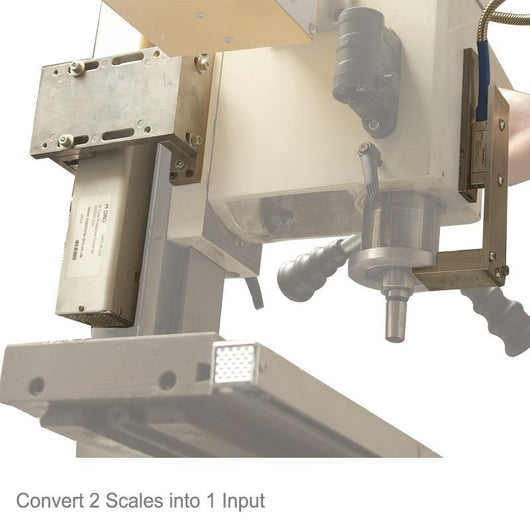

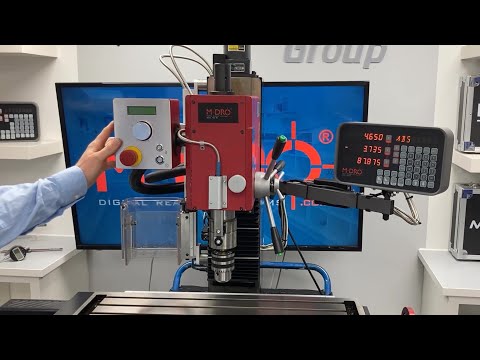

Perfect for milling machines and lathes, the interface maintains spindle-to-table distances or enables fine and coarse feed tracking on lathes. With no external power required, the unit draws power from the DRO console's encoder supply, streamlining integration and installation.
Combines Encoder Outputs - Adds or subtracts the signals from two encoders into a single output
Differential Measurement - Ideal for applications like milling quill + knee, or lathe carriage + compound slide

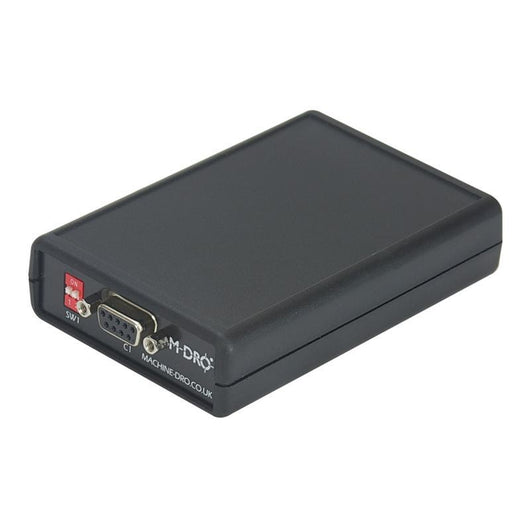

Reversible Direction - Encoder input direction can be adjusted via DIP switch or by reversing input cables
No External Power Needed - Powered directly from the DRO console's encoder supply
High Compatibility - Works with 1, 5, 10, and 25 micron resolution quadrature encoders (note: both encoders must have the same resolution)
Built in the UK - Designed and manufactured in the UK for dependable performance
Compact & Efficient - Simple to install and highly effective for DRO upgrades and retrofits
Input/Output: Quadrature A/B channels
Resolutions Supported: 1μm, 5μm, 10μm, 25μm (both encoders must be the same)
Power Supply: Supplied via encoder port on DRO console (no external PSU required)

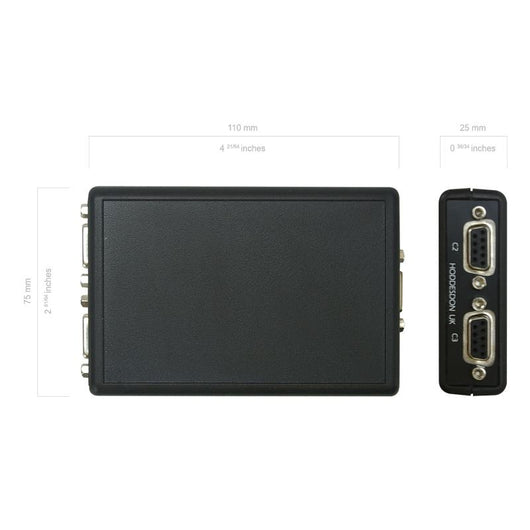

Mounting: Compact form factor for ease of integration
Configuration: DIP switch and cable-reversible input direction
