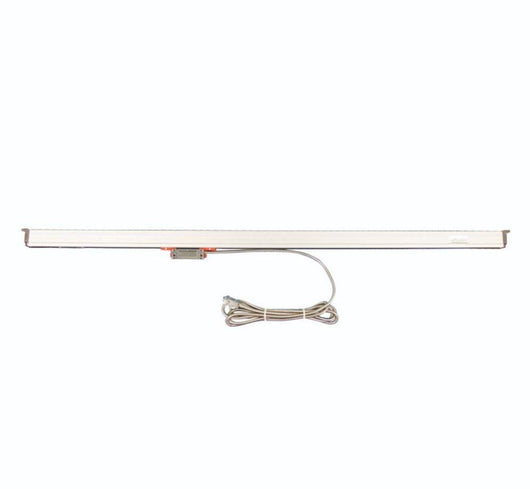

M-DRO Long length - 1300mm (51 3/16) Reading Length Optical Linear Encoder

• The M-DRO GS600 Long Length precision optical glass grated scale

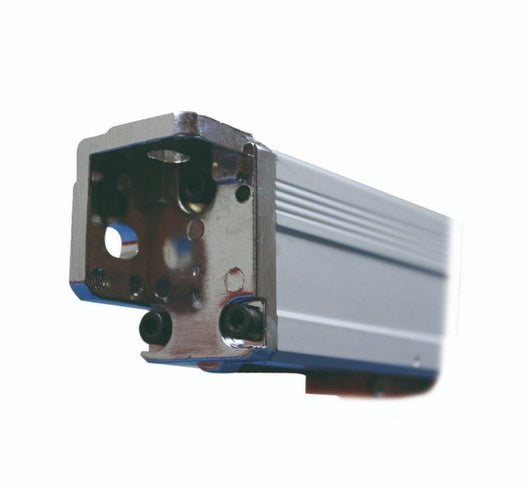

• Comprised of a heavy duty rigid aluminium extrusion with slotted end blocks for simple adjustable mounting
• An additional centre support bracket is also included

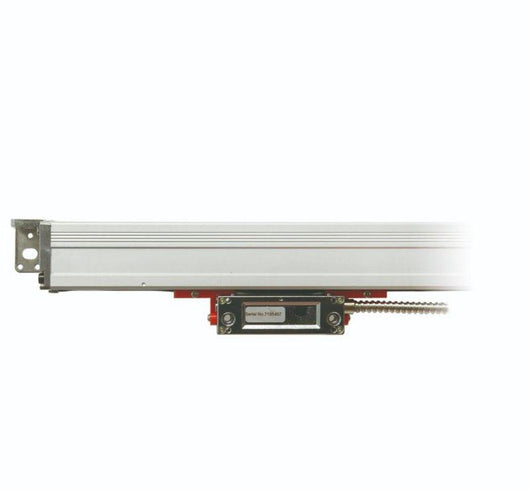

• The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware
• Pre-fitted with armoured cable and connector
• Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment

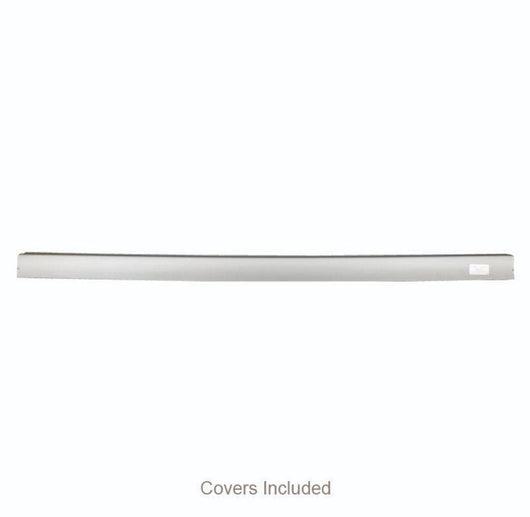

• Optional protective covers are available, a single part cover that fits over the scale or a two part cover with a mounting spar, for simple installation on a non-machined face
• For compatible display consoles please check the display console compatibility guide below
• Please feel free to contact our technical staff for assistance

• Machine-DRO History - A division of Allendale Electronics, a family run British company founded in 2004. Our roots are firmly based in the UK, with a head office, engineering and inspection department at our works in Hoddesdon, Hertfordshire. We pride ourselves on being a measuring tool specialists offering tools, services, advice and expertise to our end customers and international distributor network

Key Specifications

• Reading Length - 1300mm (51 3/16")
• Resolution - 0.005mm
• Encoder Type - Optical
• Encoder Output - TTL (A, B and Z) Quadrature
• Cable Type - Flexible Armoured
• Cable Length - 3 Metres
• Protection - IP53
