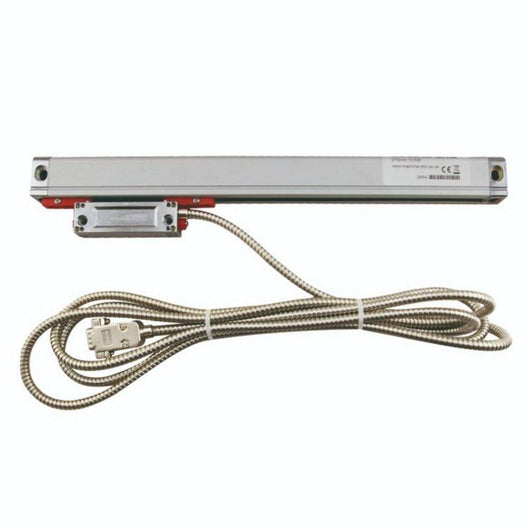

M-DRO Standard - 370mm (14 1/2") Reading Length Optical Linear Encoder

This product has been discontinued. Please contact us for Alternatives.

• Comprised of a rigid aluminium extrusion with slotted end blocks for simple adjustable mounting

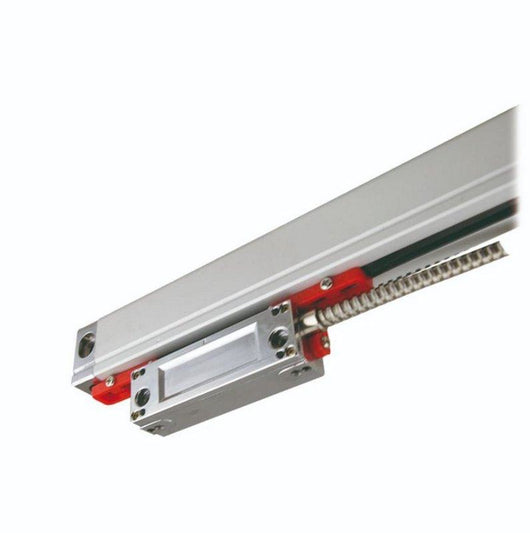

• The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware
• Pre-fitted with armoured cable and connector. Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment

• The M-DRO GS300 precision optical glass grated scale.
• Comprised of a rigid aluminium extrusion with slotted end blocks for simple adjustable mounting.
• The reading head offers several mounting points for through hole or easy attachment to brackets and additional mounting hardware.
• Pre-fitted with armoured cable and connector. Additional interfaces are available to combine axis or convert the output to suit other manufacturer's equipment

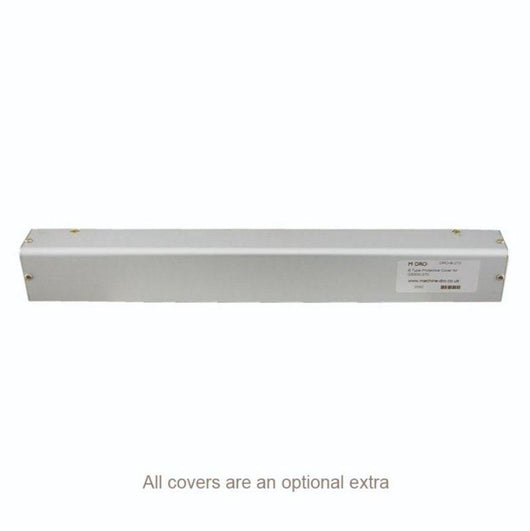

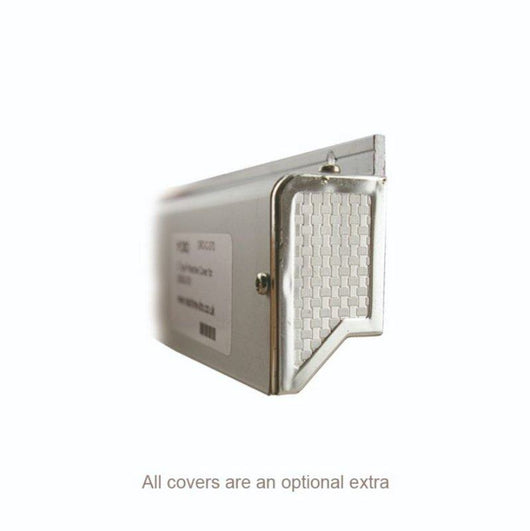

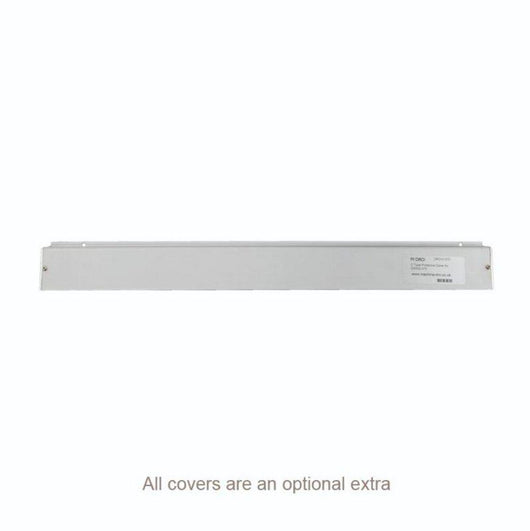

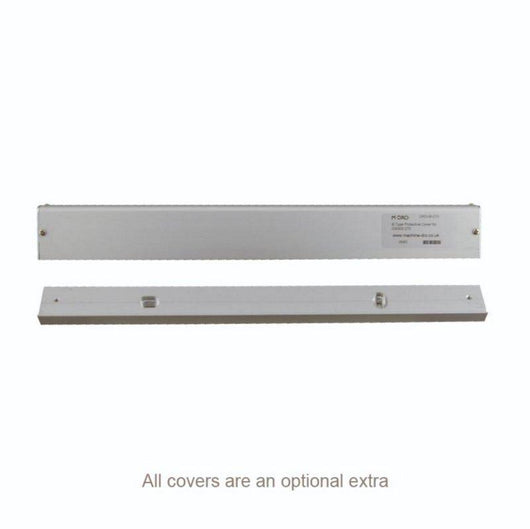

• Optional protective covers are available, a single part cover that fits over the scale or a two part cover with a mounting spar, for simple installation on a non-machined face.
• For compatible display consoles please check the display console compatibility guide below. Please feel free to contact our technical staff for assistance.

Key Specifications

• Reading Length - 370mm (14 1/2")
• Resolution - 0.005mm
• Encoder Type - Optical
• Encoder Output - TTL (A, B and Z) Quadrature
• Cable Type - Flexible Armoured
• Cable Length - 3 Metres
• Protection - IP53
