| Resolution | 0.1° |
|---|

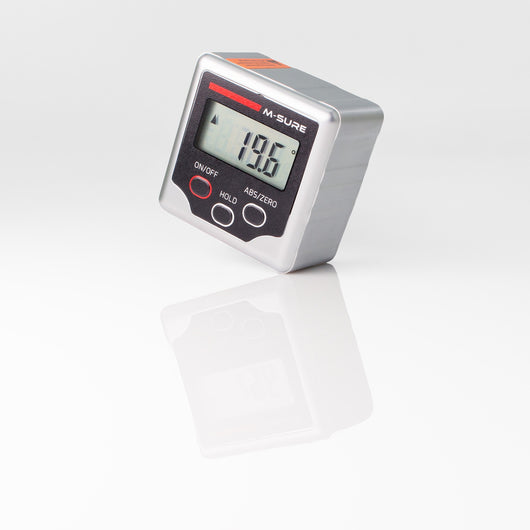

The M-SURE digital angle gauge/inclinometer is a high-precision instrument suitable for a wide range of angle setting and measurement applications. Designed for precision engineering tasks, it serves as a reference gauge for setting angles relative to a workpiece or workspace.
Resolution: 0.1 Degrees
Range: +/- 180 Degrees
Easy calibration: calibrate to any reference surface by placing the unit down and pressing the zero button - this sets the display to zero degrees, ready for accurate relative angle measurements.
Strong magnetic base: easy attachment to machine tables, angle plates and vices.

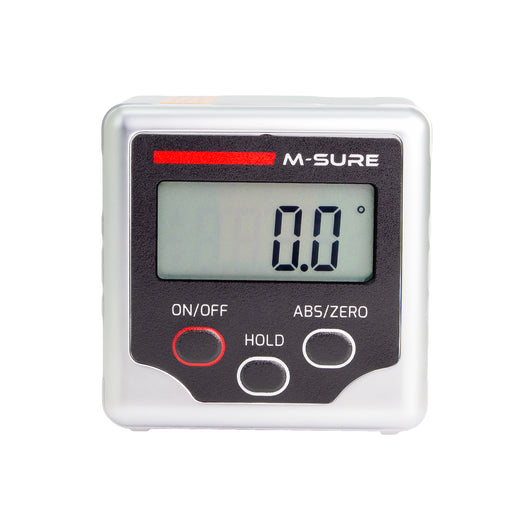

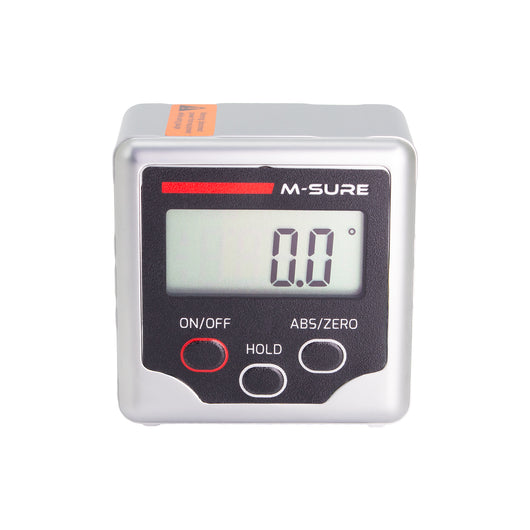

Solid construction: this mechanical, pendulum-type gauge is housed in a rugged metal casing. The front panel features an easy-to-read LCD, On/Off, Hold and ABS/Zero buttons.

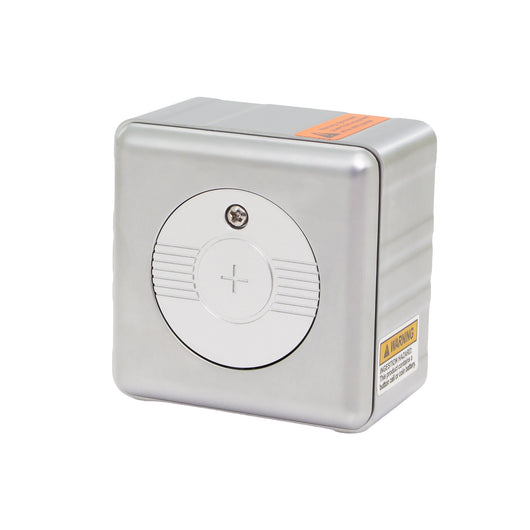

Battery operated: The back panel has a screw lock compartment for a standard CR2032 battery.
Ideal for use with a range of items, including:
Tilting angle plates
Angle tables
Sine tables
Swivel/tilt vices
Mitre saws
Table saws
Planner fences
Band saw fences
What’s Included

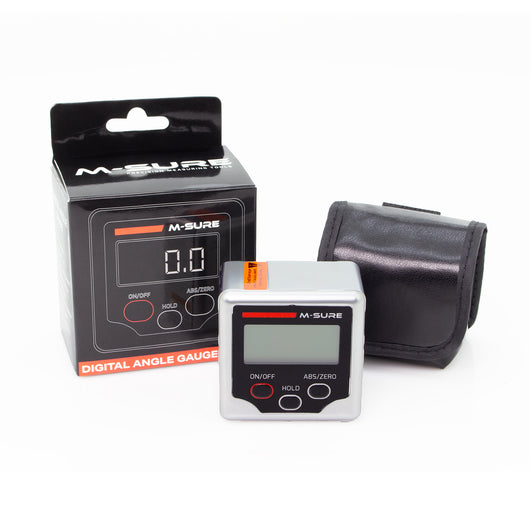

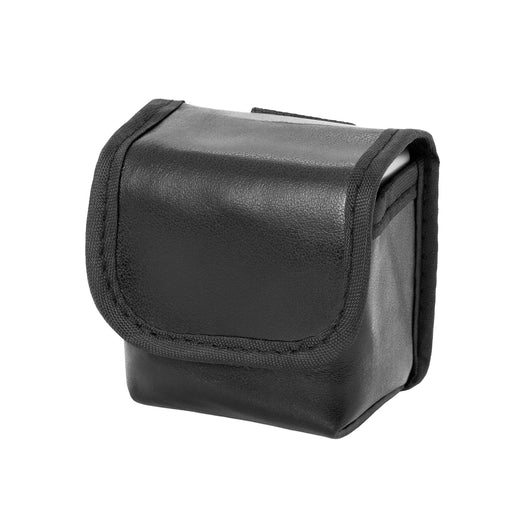

Digital angle gauge, CR2032 battery, PU storage pouch with belt loop, instructions card.
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202966557 |
| Base length | 50mm/2" |
| Base width | 26.5mm/1" |
| Battery type | CR2032 |
| Digital analogue | Digital |
| Functions | On/Off, Hold, ABS/Zero |
| Resolution | 0.1° |
