Machine DRO 35 to 50mm Metric Internal Dial Bore gauge
£32.83 INC VAT
Checkout With

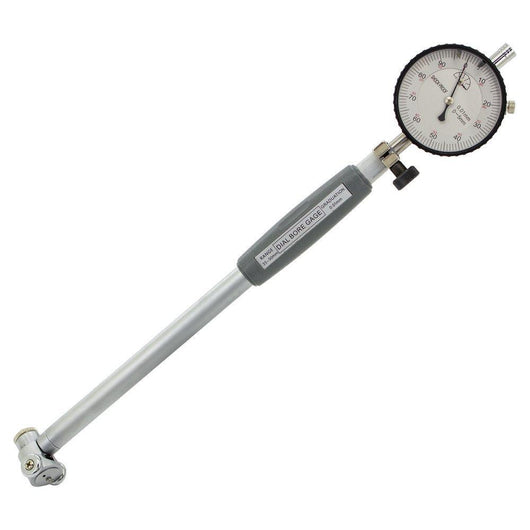

- The dial bore gauge offers - an accurate method of measuring a bore, or detecting a taper or ovality
- Calibration - The dial bore gauge must be calibrated to a known size and will indicate the deviation from that size by a maximum of 1mm
- A set of spacer rings and anvils are included with the bore gauge

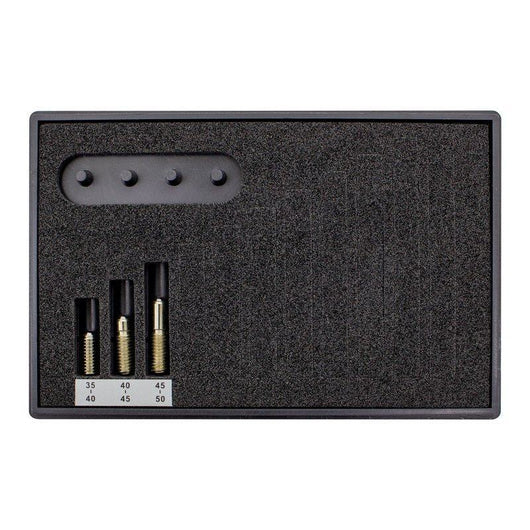

- The anvils are used to set the measuring range to within 1mm of the desired bore to be measured or produced
- An outside micrometer, setting ring or slip gauges can be used to calibrate the bore gauge
- The bore gauge has a knurled locknut to secure the anvils and spacers

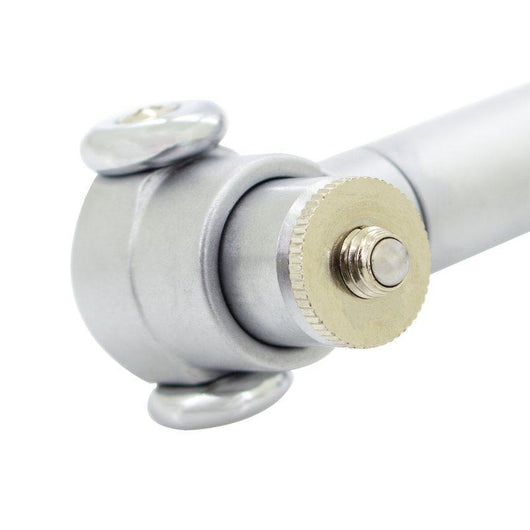

- There is a sprung loaded guide used to centralize the two measuring contact points to the bore

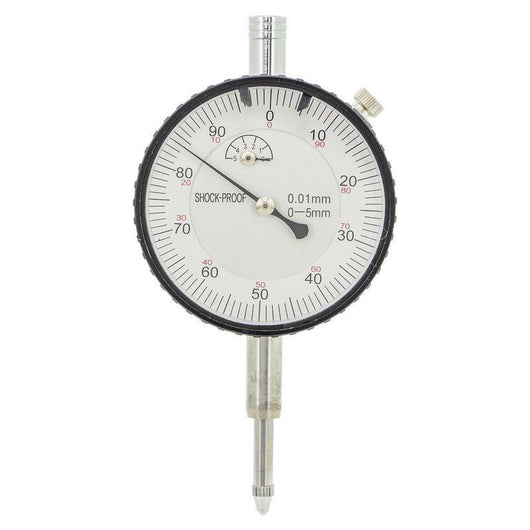

- At the opposite end of the gauge there is a heat insulating handle with a split collet and knurled locking ring to secure the dial indicator

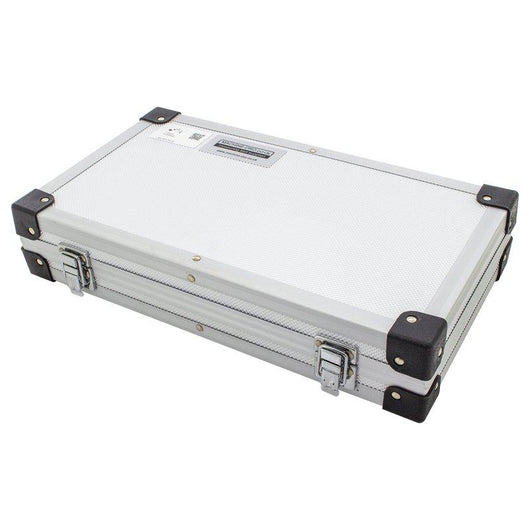

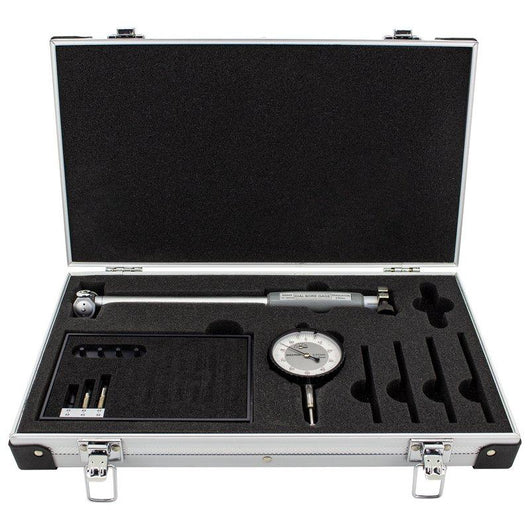

- Included with the bore gauge - Probe body, dial indicator, 3 anvils, 1 spacer ring, storage case and instructions
- Measuring Range - 35 to 50mm
Machine-DRO History - A division of The Allendale Group, a family run British company founded in 2003. Our roots are firmly based in the UK, with a head office, engineering and inspection department at our works in Hoddesdon, Hertfordshire. We pride ourselves on being a measuring tool specialists offering tools, services, advice and expertise to our end customers and international distributor network.
Product Specifications
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5055396108699 |
| Data output | No |
| Digital analogue | Anologue |
| Measurement range | 35-50mm |
| Measurement units | Metric |
| Mpn | ME-BG-35-50 |
| Product series | BG Series - Cylinder Bore Gauges |
| Product sub type | Cylinder Bore Gauge |
| Resolution | 0.01mm |
| Waterproof | No |
