- Easy, interchangeable anvils allow a wide range of measurements.
- Ratchet stop delivers a constant measuring force.

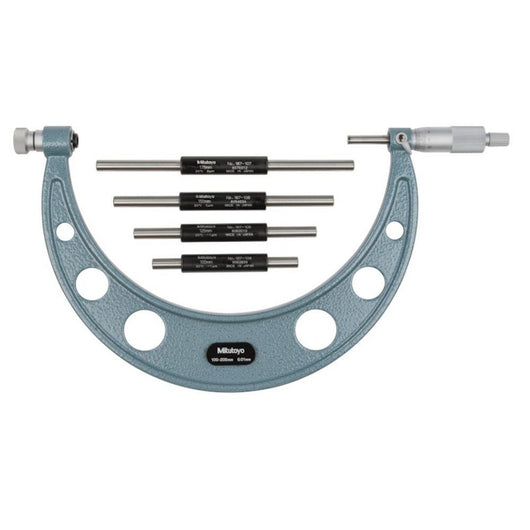

With one-piece carbide tip spindle and interchangeable ‚hardened anvils with ground threads. Micro-lapped anvil and spindle faces, perforated frame with enamel finish. Supplied with standards, ratchet stop, positive locking clamp and supplied in a wooden or plastic (depending on size) storage case.
Key Specifications
Range: 100 - 200 mm
Spindle feed error: 3 µm
Parallelism: (2+L/100) μm, L = max. range (mm)
Setting standard: 4 (100, 125, 150, 175 mm)
Interchangeable anvils: 4
Mass_ 1.38 kg
Measuring face: Carbide-tipped micro-lap finish spindle and hardened steel anvil
Measuring spindle: With spindle lock, ¸6,35 mm (‰¤300 mm) ¸ 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale: Thimble and sleeve satin chrome finish, ¸18 mm
Digital/Analog_ Analog
Inch-Metric: Metric
Graduation: 0,01 mm
Measuring spindle: With spindle lock, ¸6,35 mm, spindle pitch 0,5 mm
Delivered: Including box, setting standard, anvils, key
