- Easy, interchangeable anvils allow a wide range of measurements.
- Ratchet stop delivers a constant measuring force.

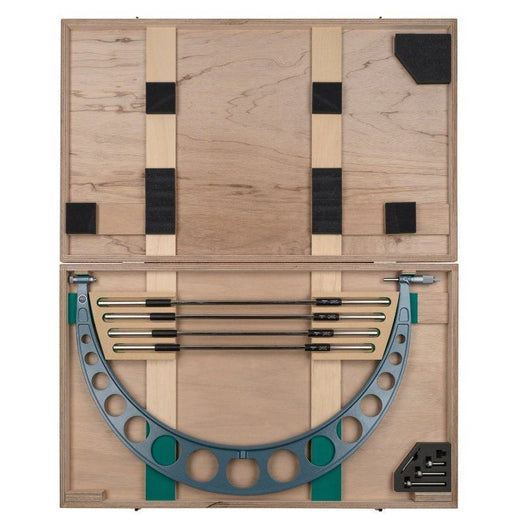

With one-piece carbide tip spindle and interchangeable ‚hardened anvils with ground threads. Micro-lapped anvil and spindle faces, perforated frame with enamel finish. Supplied with standards, ratchet stop, positive locking clamp and supplied in a wooden or plastic (depending on size) storage case
Key Specifications
Range: 20 - 24 Inch
Spindle feed error: 1.5E-4"
Parallelism: [0,00008 + 0,00004 (L/4)] ", L = max. range (inch)
Setting standard: 4 (20, 21, 22, 23")
Interchangeable anvils: 4
Mass_ 6.35 kg
Measuring face: Carbide-tipped micro-lap finish spindle and hardened steel anvil
Measuring spindle: With spindle lock, ¸6,35 mm (‰¤300 mm) ¸ 8 mm (>300 mm) , spindle pitch 0,5 mm
Scale: Thimble and sleeve satin chrome finish, ¸21 mm
Digital/Analog_ Analog
Inch-Metric: Inch
Graduation: 0,001"
Measuring spindle: With spindle lock, ¸8 mm, spindle pitch 0,635 mm
Delivered: Including box, setting standard, anvils, key
