mitutoyo 12 7mm 0 5 absolute digimatic vertical display indicator high accuracy 543 586

Pre-order

SKU: MIT-543-586

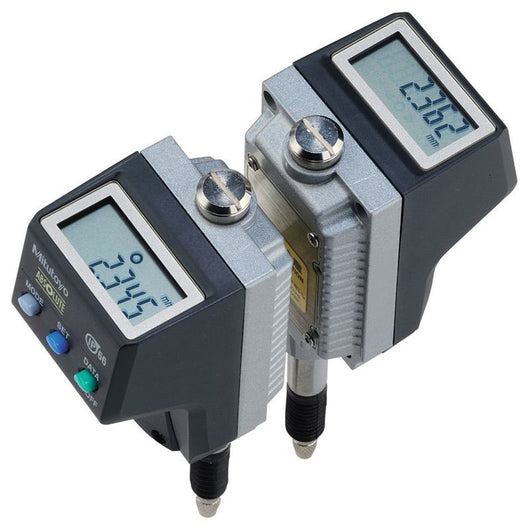

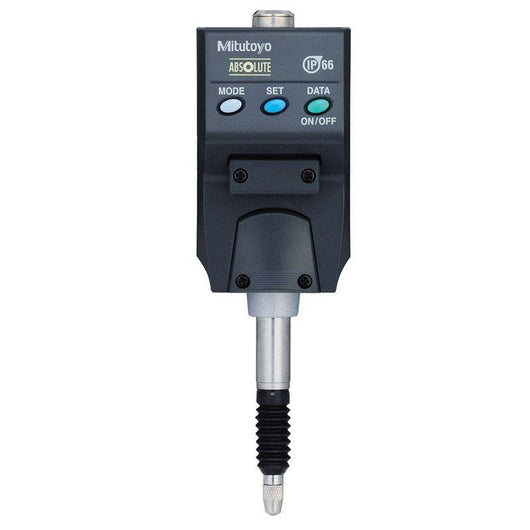

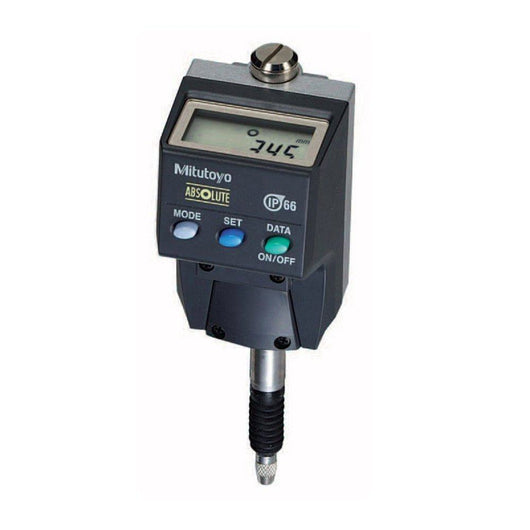

Mitutoyo 12.7mm / 0.5" Absolute Digimatic Vertical Display Indicator High Accuracy 543-586

Name: Mitutoyo 12.7mm / 0.5" Absolute Digimatic Vertical Display Indicator High Accuracy 543-586
Brand: Mitutoyo
SKU: MIT-543-586
Price: 276.75 GBP
Availability: InStock

Was: £369.00

£276.75 EX VAT

£332.10 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

A dust proof, waterproof, back-plunger type digital indicator suitable for use in the presence of coolant or cutting oil
ABSOLUTE System scale for error free, high-speed measurement
Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation
SPC data output
Proven ABSOLUTE sensor
Rated to IP66 water and dust proofing standard and oil resistance improved
Slim body design is advantageous for multi-point measurements

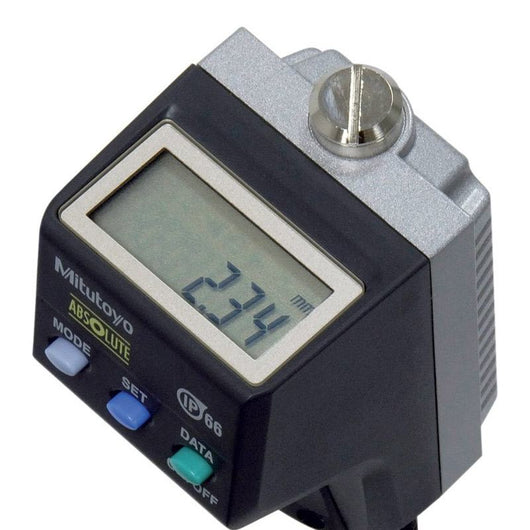

Improvement in workability with the LCD readout rotation function
Built in tolerance judgement function
Switchable resolution

Mitutoyo 12.7mm / 0.5" Absolute Digimatic Vertical Display Indicator High Accuracy

Key Specifications

Type - Plunger
Range - 12.7mm / .5"
Resolution - 0.001mm / .00005"
Data Output - Yes
Accuracy - ±0.003mm / ±.00012"
Display LCD character height - 6.2mm
Stem diameter - 8mm
Measuring Force - 2.5N or less
Power Supply - SR44

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396134780
Accuracy e mpe	0.003mm
Accuracy h mpe	0.002mm
Battery life	Approx. 7000 hours
Battery type	SR44
Contact point thread	#4-48UNF
Data output	Yes
Display type	Digital
Ip rating	IP 66
Lug back	Lug Back
Measurement range	0-5mm (0-0.2")
Measurement units	Metric/Imperial
Mpn	543-586
Product series	Series 543 - ABSOLUTE Digimatic Indicators ID-N/B
Product sub type	Plunger
Repeatability	0.002mm
Resolution	0.01/.001mm (0.0005"/0.000005")
Stem diameter	9.52mm
