mitutoyo 12 7mm 0 5 absolute digital sensor restore indicator mit 543 571

Pre-order

SKU: MIT-543-571

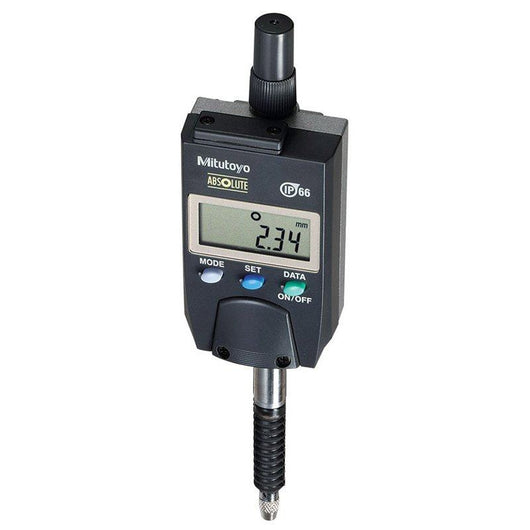

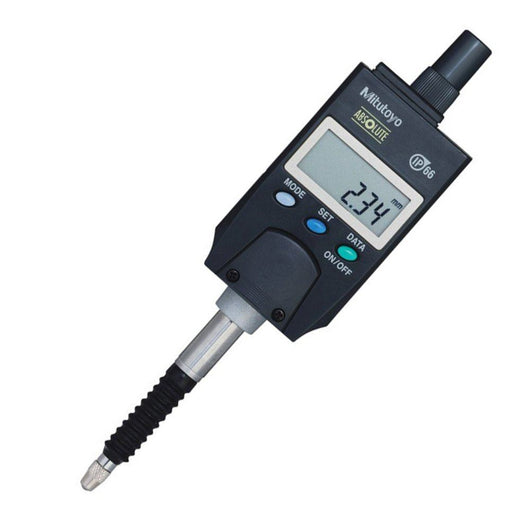

Mitutoyo 12.7mm / 0.5" Absolute Digital Sensor Restore Indicator - MIT-543-571

Name: Mitutoyo 12.7mm / 0.5" Absolute Digital Sensor Restore Indicator - MIT-543-571
Brand: Mitutoyo
SKU: MIT-543-571
Price: 186.75 GBP
Availability: InStock

Was: £249.00

£186.75 EX VAT

£224.10 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

A slim-style dustproof and waterproof digital indicator suitable for use in the presence of coolant or cutting oil
ABSOLUTE System scale for error free, high-speed measurement
Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation
SPC data output - cable not supplied
Slim type ID-N and Proven ABSOLUTE sensor
Rated to IP66 water and dust proofing standard and oil resistance improved
Slim body design is advantageous for multi-point measurements
Improvement in workability with the LCD readout rotation function
Built in tolerance judgement function
Switchable resolution

Key Specifications

Type - Plunger
Range - 12.7mm / 0.5"
Resolution - 0.01mm / .0005"
Data Output - Yes
Accuracy - ±0.02mm / ±.0008"
Display LCD character height - 6.2mm
Stem diameter - 9.52mm (3/8")
Measuring Force - 2.5N or less
Power Supply - SR44
Functions - Preset, Zeroset, GO/±NG judgement, Max/Min value hold, Runout, Resolution switching, Counting direction switching, Power ON/OFF, Data output, Inch/mm readout. Alarm: Counting value composition error, Overflow error, Tolerance limit setting error.

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396134759
Accessories	MIT-125317, MIT-238774, MIT-02AZD790G, MIT-02AZE140G, MIT-21EAA194, MIT-21EAA190, MIT-21EAA210, MIT-21AEAA211, MIT-21EAA212, MIT-21EAA423, MIT-21EZA146, MIT-21EZA150
Accuracy e mpe	0.02mm
Accuracy h mpe	0.02mm
Battery life	Approx. 7000 hours
Battery type	SR44
Contact point thread	#4-48UNF
Data output	Yes
Display type	Digital
Ip rating	IP 66
Lug back	Lug Back
Measurement range	0-12.7mm (0-0.5")
Measurement units	Metric/Imperial
Mpn	543-571
Product series	Series 543 - ABSOLUTE Digimatic Indicators ID-N/B
Product sub type	Plunger
Repeatability	0.01mm
Resolution	0.01mm (0.0005")
Stem diameter	9.52mm
