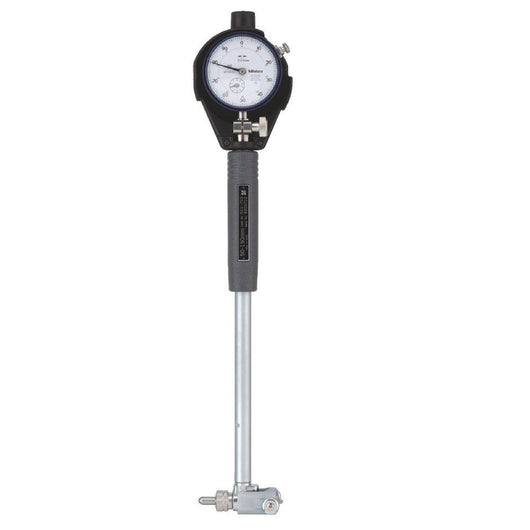

Mitutoyo 2-Point Inside Measuring Instrument Bore Gauge 50-150mm 0.001mm 511-723


This Item Is Discontinued

  • It reduces the influence of heat from the operator's hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments




Key Specifications

Range: 50 - 150 mm

Stroke of contact point: 18 - 60 mm: 1.2 mm 50 - 400 mm: 1.6 mm

Graduation: 0.001 mm

Number of anvils: 11

Measuring depth: 150 mm

No. Dial 2109AB-10

Indicator:

Accuracy: 2 µm

Accuracy: 2 µm

Repeatability: 0,5 µm

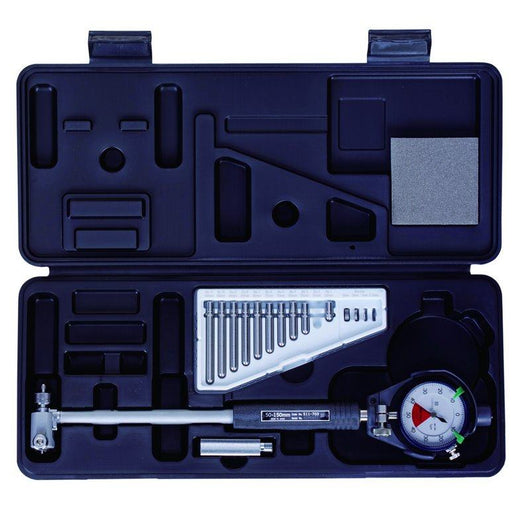

Delivered: Including box, dial indicator, plastic cover for indicator

Digital/Analog_ Analog

Inch-Metric: Metric
