mitutoyo 30 4mm 1 2 digital multi functional indicator high accuracy

Pre-order

SKU: MIT-543-562E

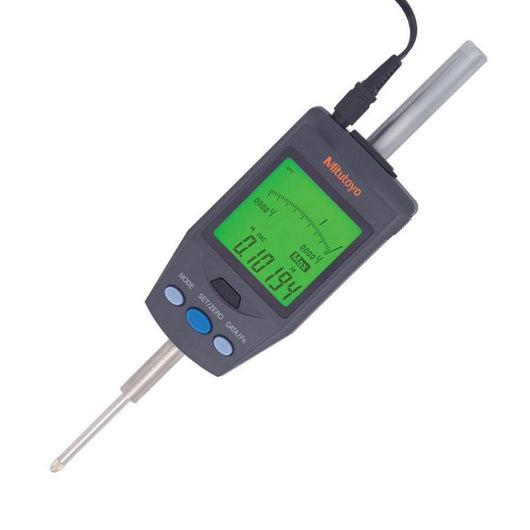

Mitutoyo 30.4mm/ 1.2" Digital Multi Functional Indicator High Accuracy

Name: Mitutoyo 30.4mm/ 1.2" Digital Multi Functional Indicator High Accuracy
Brand: Mitutoyo
SKU: MIT-543-562E
Price: 579.00 GBP
Availability: InStock

Was: £772.00

£579.00 EX VAT

£694.80 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

A back-lit screen type digital indicator, mains-powered
ABSOLUTE System scale for error free, high-speed measurement
Functionality includes an analogue bar scale, switchable resolution, colour-coded tolerance judgement, Max/Min data hold and Runout measurement
SPC data output
The maximum, minimum, or runout value can be displayed during measurement
With the ABSOLUTE linear encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off

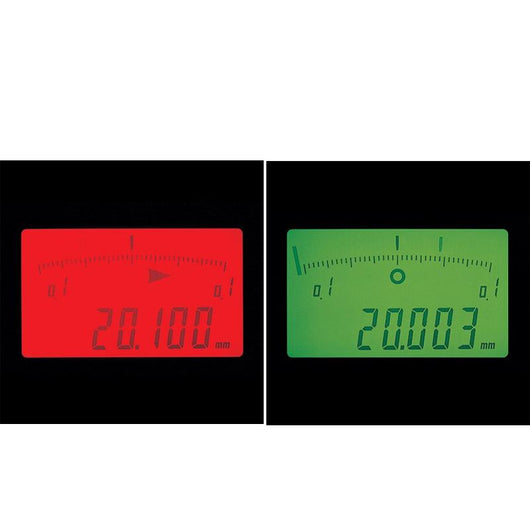

GO/Â±NG judgement is performed by setting upper and lower limits. if a judgement result shows an out of tolerance condition, the display backlighting changes from green to red, so tolerance judgement can be made at a glance
An analog bar indicator is integrated so that visualizing the fall of measurements within limits is as easy as with a dial indicator. The display range of the analog bar can be set to suit the application

Key Specifications

Type - Plunger
Range - 30.4mm/ 1.2"
Resolution - 0.0005mm/ 0.001mm/ .00005"/ .0001"
Data Output - Yes
Accuracy - ±0.0015mm
Display LCD character height - 9.5mm
Stem diameter - 9.52mm (3/8")
Measuring Force - 2.0N or less
Power Supply - 6V DC
Functions - Preset, Zeroset, GO/±NG judgement, Max/Min value hold, Runout, Resolution switching, Counting direction switching, Power ON/OFF, Data output, Inch/mm readout. Alarm: Counting value composition error, Overflow error, Tolerance limit setting error.

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396134667
Accuracy e mpe	0.0015mm (0.00006")
Accuracy h mpe	0.0015mm (0.00006")
Battery type	6VDC via AC adaptor
Contact point thread	#4-48UNF
Data output	No
Display type	Digital
Ip rating	IP 30
Lug back	Flat Back
Measurement range	0-30.4mm (0-1.2")
Measurement units	Metric/Imperial
Mpn	543-562E
Product series	Series 543 - Digimatic High Accuracy/Functionality Indicator ID-H
Product sub type	Plunger
Repeatability	0.001mm (0.00004")
Resolution	0.001/0.0005mm (0.0001/0.00005/0.00002")
Stem diameter	9.52mm
