mitutoyo 60 9mm 2 4 digital multi functional indicator high accuracy mit 543 564e

Pre-order

SKU: MIT-543-564E

Mitutoyo 60.9mm/ 2.4" Digital Multi Functional Indicator High Accuracy - MIT-543-564E

Name: Mitutoyo 60.9mm/ 2.4" Digital Multi Functional Indicator High Accuracy - MIT-543-564E
Brand: Mitutoyo
SKU: MIT-543-564E
Price: 666.00 GBP
Availability: InStock

Was: £888.00

£666.00 EX VAT

£799.20 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

A back-lit screen type digital indicator, mains-powered
ABSOLUTE System scale for error free, high-speed measurement
Functionality includes an analogue bar scale, switchable resolution, colour-coded tolerance judgement, Max/Min data hold and Runout measurement
Mitutoyo SPC data output
With the ABSOLUTE linear encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off

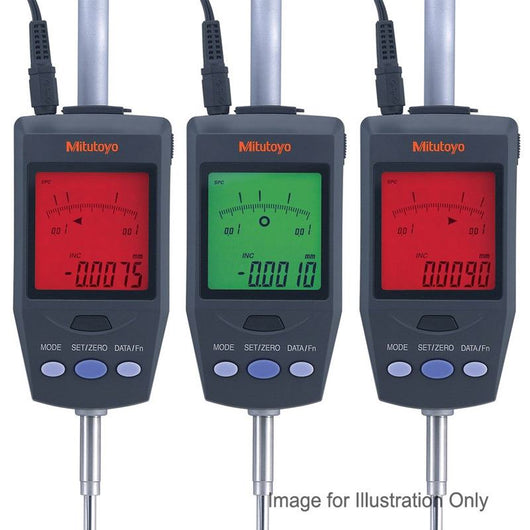

GO/Â±NG judgement is performed by setting upper and lower limits. if a judgement result shows an out of tolerance condition, the display backlighting changes from green to red, so tolerance judgement can be made at a glance
The maximum, minimum, or runout value can be displayed during measurement
An analog bar indicator is integrated so that visualizing the fall of measurements within limits is as easy as with a dial indicator. The display range of the analog bar can be set to suit the application
Functions - Preset, Zeroset, GO/Â±NG judgement, Max/Min value hold, Runout, Resolution switching, Counting direction switching, Power ON/OFF, Data output, Inch/mm readout. Alarm: Counting value composition error, Overflow error, Tolerance limit setting err
Range - 60.9mm/ 2.4"

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5055396134674
Battery type	6VDC via AC adaptor
Data output	No
Display type	Digital
Measurement range	60.9mm (0-2.4")
Measurement units	Metric/Imperial
Mpn	543-564E
Product series	Series 543 - Digimatic High Accuracy/Functionality Indicator ID-H
Product sub type	Plunger
Resolution	0.001/0.0005mm (0.0001/0.00005/0.00002")
