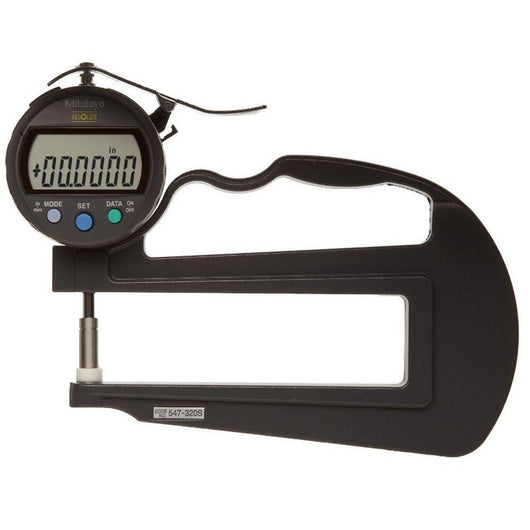

Digimatic version of standard dial type, uses IDC digimatic iIndicator. data output. Power supply 1 x SR44 batteries (SR-44L/1BP - Panasonic Silver Oxide) supplied. Applications: 547-401, 547-300, 547-320 are used for paper, film, sheet metal etc. 547-316 is used for narrow grooves etc. 547-312 is used for convex/concave lens. 547-361 is used for pipe and cylinder curved plate.
Digital step: 0.0005"/0.01 mm
Parallelism: 0.0005"
Indicator No.: 543-400BS (ID-C)
Max. measuring depth: 120
Measuring force: ≤ 1,5 N
Mass_ 400 g
Accuracy: ±0.001" / ±20 µm
Max. response speed: Unlimited
Contact point: Thread # 4-48UNF
Battery life: approx. 7000 hours
DATA/HOLD: Yes
Data output: Yes
ON/OFF: Yes
ZERO/ABS: Yes
PRESET: Yes
Function lock: Yes
GO/±NG judgement: Yes
Calculation function (with formula): Yes
Counting direction switchable: Yes
Inch-Metric: Inch/Metric
Alarm: Low voltage, counting value composition error, overflow error, tolerance limit setting error (ID-C only)
Power supply: 1 battery SR-44
Functions: With indicator ID-C No. 543-402BS (ANSI/AGD type)
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5055396190663 |
| Data output | No |
| Digital analogue | Digital |
| Discontinued since | 02/11/2022 |
| Display type | Digital |
| Mpn | 547-320S |
| Product series | Series 547 - ABSOLUTE Digimatic Thickness Gauges |
| Product sub type | Thickness |
| Replacement sku | ProductDrop |
| Waterproof | No |
