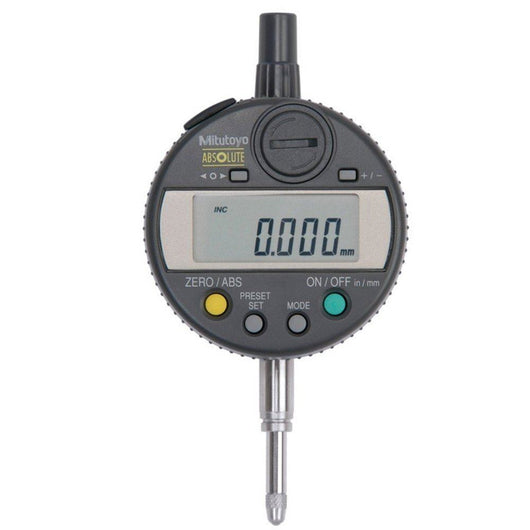

Mitutoyo ABSOLUTE Digimatic Peak Value Hold Indicator ID-C 12.7mm/ .5" - SPC

• A digital indicator featuring a peak-value hold function

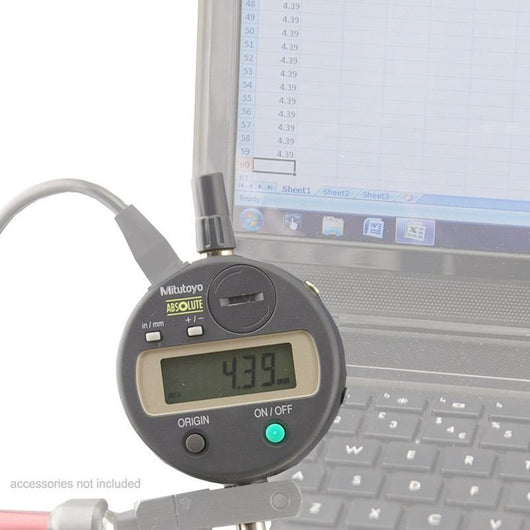

• SPC Data capture compatible - requires F type Mitutoyo connector cable, (not supplied). For more information please see the datasheet below
• ABSOLUTE System scale for error free, high-speed measurement
• Functionality includes tolerance judgement on Max/Min and Runout measurement
• Measurement error due to spindle overspeed is eliminated with the ABSOLUTE encoder
• An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements
• Incremental measurements can be made at any time without losing the origin setting
• Functions - Preset, Zeroset, GO/±NG judgement, Max/Min/Runout value holding, Counting direction switching, Power ON/OFF, Data output, inch/mm readout. Alarm: low voltage, Counting value composition error, Overflow error, Tolerance limit setting error
• Range - 12.7mm / .5"
• Resolution - 0.001mm / .00005", Accuracy - ±0.001mm / ±.00005"

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

This product has been superseded by MIT-543-301B.
