Mitutoyo ABSOLUTE Digimatic Slim Body Economy Indicator 0.01mm resolution ID-S 12.7mm / .5"

Discontinued and replaced by MIT-543-782

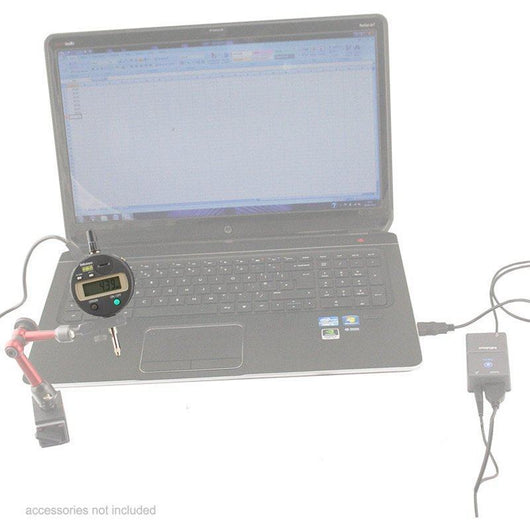

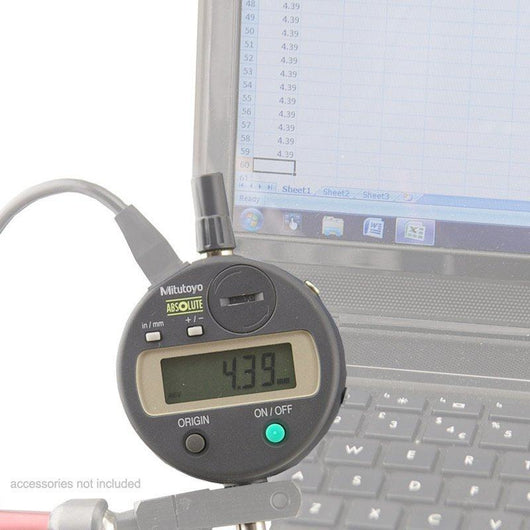

• SPC Data capture compatible - requires F type Mitutoyo connector cable, (not supplied). For more information please see the datasheet below
• ABSOLUTE System scale for error free, high-speed measurement
• The ID-S indicates the absolute position of the spindle from the origin point at power-on, allowing measurement to start immediately
• Zero-setting is performed with the ORIGIN button, and this setting does not have to be repeated during the entire life of the battery, even after power-off
• Measurement error due to spindle overspeed is eliminated with the ABSOLUTE encoder
• An economical digital indicator with an extremely long battery life suited to installation in measuring jigs where access may be restricted
• An ABSOLUTE scale only needs to have the origin position set once, which then holds for all future measurements
• Incremental measurements can be made at any time without losing the origin setting
• Functions - Origin-set, (Zeroset), Counting direction switching, Power ON/OFF, Data output, Inch/mm readout. Alarm: low voltage, Counting value composition error
• Range - 12.7mm / .5"

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
