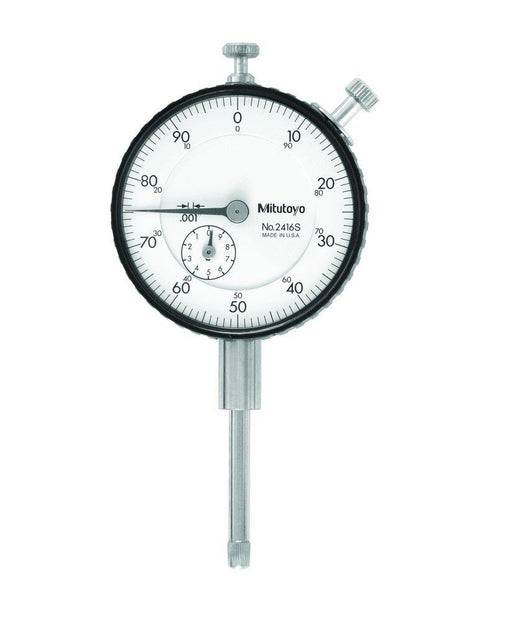

Mitutoyo 2416A Dial Indicator 1" 0-100 Dial Lug Back, The Mitutoyo “A” Series Dial Indicators have scratch resistant, anti-glare coated crystals just like our popular Test Indicators. They also have a standardized stop screw thread to M2.5x0.45, increased mounting stem length*, a redesigned spindle for waterproof models allowing for additional contact points to be used, a tapered hand/pointer base which makes repairs easier when needed, tolerance clips are now optional, a change in stop screw shape*, and the bezel and dust cap colors are black
Range: 1"
Range per rev.: 0.1"
Scale: 0-100 (100-0)
Accuracy: ±0.002"
Mass_ 164 g
Type: ANSI/AGD Standard
Digital/Analog_ Analog
Inch-Metric: Inch
Error of indication one revolution: ±0.002"
Stem: 9.52 mm / 0.375"
Contact point: Carbide tipped, thread: 4-48UNF
Delivered: with certificate of inspection
Continuous dial: Yes
Functions: ANSI/AGD type
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202816340 |
| Accuracy e mpe | +/-0.002" |
| Accuracy h mpe | +/-0.001" |
| Data output | No |
| Display type | Dial |
| Measurement range | 0-1" |
| Measurement units | Imperial |
| Mpn | 2416A |
| Product series | Series 2 - Long Stroke Dial Indicators |
| Product sub type | Plunger |
| Repeatability | +/-0.0002" |
| Resolution | 0.002" |
