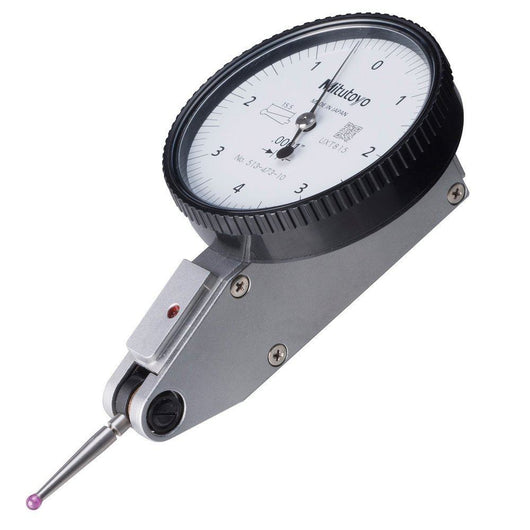

Mitutoyo Dial Test Indicator Horizontal Ruby Stylus 0.008" 0.0001" 9.52mm Stem 513-473-10E
£132.30 INC VAT
Checkout With
- Drastically enhanced durability, sensitivity and visibility.
- Glare-free flat crystal face allows easy reading of graduations.
- O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.

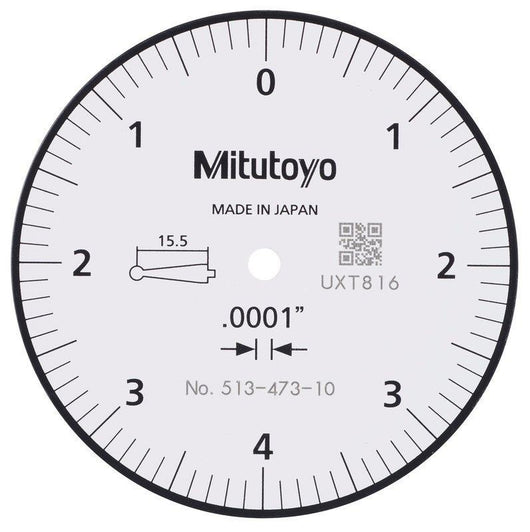

- The stylus length is on the dial face to reorder a replacement
- Multi-layer coatings on the crystal.
Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
Key Specifications
Scale: 0-4-0
Accuracy: ±0.0001"
H MPE (Hysteresis): 0.0001"
R MPE (Repeatability): ±0.00004"
Mass_ 42 g
Digital/Analog_ Analog
Inch-Metric: Inch
Error of indication one revolution: ±0.0001"
MPE first one revolution: ±0.0001"
Contact point: Thread M 1.7 x 0.35
Delivered: In a box with stem ø3/8", stylus ø0.079"
Functions: Basic set - ruby contact point
Product Specifications
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202816548 |
| Accuracy e mpe | 0.0001" |
| Accuracy h mpe | n/a |
| Contact point thread | M1.7X0.35 |
| Data output | No |
| Dial scale type | Balanced |
| Display type | Dial |
| Lug back | Flat Back |
| Measurement range | 0-0.008" |
| Measurement units | Inch |
| Mpn | 513-473-10E |
| Product series | Series 513 - Horizontal Dial Test Indicator |
| Product sub type | Lever |
| Repeatability | +/-0.00004" |
| Resolution | 0.0001" |
| Stem diameter | 0.375" |
