mitutoyo dial test indicator horizontal ruby stylus 0 8mm 0 01mm 8mm stem 513 474 10e

Pre-order

SKU: MIT-513-474-10E

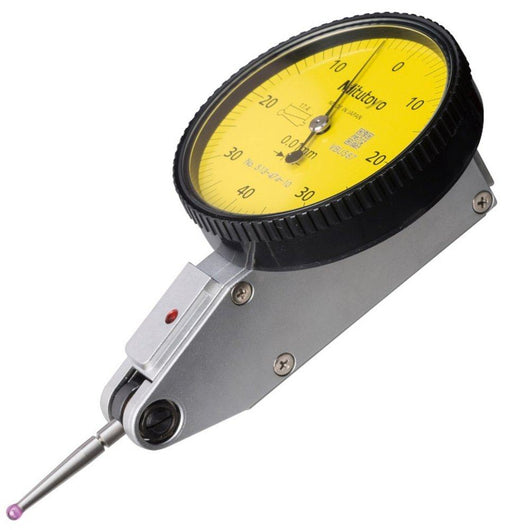

Mitutoyo Dial Test Indicator Horizontal Ruby Stylus 0.8mm 0.01mm 8mm Stem 513-474-10E

Name: Mitutoyo Dial Test Indicator Horizontal Ruby Stylus 0.8mm 0.01mm 8mm Stem 513-474-10E
Brand: Mitutoyo
SKU: MIT-513-474-10E
Price: 90.00 GBP
Availability: InStock

Was: £120.00

£90.00 EX VAT

£108.00 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

Drastically enhanced durability, sensitivity and visibility.

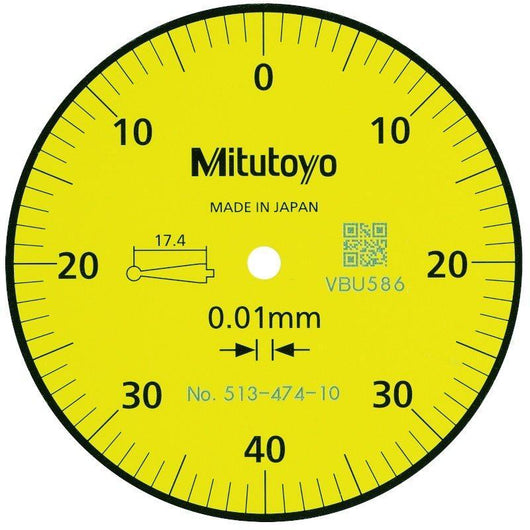

Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
Multi-layer coatings on the crystal.

Features:

Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access.
No-clutch structure for automatic reversal of measuring direction.
One-piece bezel and crystal design with O-ring provide resistance to water and dust.
The glare-free flat crystal face has a scratch-resistant coating.
High sensitivity and quick response because of jeweled bearings.
Standard carbide contact point provide.
Basic Set includes test indicator with 2mm Contact Point, knurled clamp ring, and dovetail with 8mm Stem
Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar

Key Specifications

Range: 0.8 mm

Graduation: 0.01 mm

Scale: 0-40-0

MPE any 10 scale divisions: 5 µm

MPE any 1/2 revolution: 6 µm

MPE measuring range: 8 µm

H MPE (Hysteresis): 3 µm

R MPE (Repeatability): 3 µm

Ruby stylus tip ø2 mm No.: 21CZA201

Measuring force: 0.01-0.3 N

Mass_ 45 g

Digital/Analog_ Analog

Inch-Metric: Metric

Type: Basic set - Ruby contact point

Contact point: Thread M 1.7 x 0.35

Delivered: In a box with stem ø8 mm, stylus ø2 mm

Double scale spacing_ Yes

Functions: Basic set - ruby contact point

Brand Information

Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5056202803401
Accuracy e mpe	0.008mm
Accuracy h mpe	n/a
Contact point thread	M1.7X0.35
Data output	No
Dial scale type	Balanced
Display type	Dial
Lug back	Flat Back
Measurement range	0-0.8mm
Measurement units	Metric
Mpn	513-474-10E
Product series	Series 513 - Horizontal Dial Test Indicator
Product sub type	Lever
Repeatability	0.003mm
Resolution	0.01mm
Stem diameter	8mm
