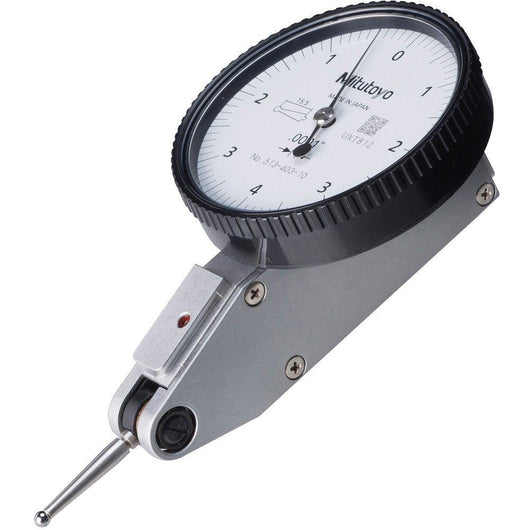

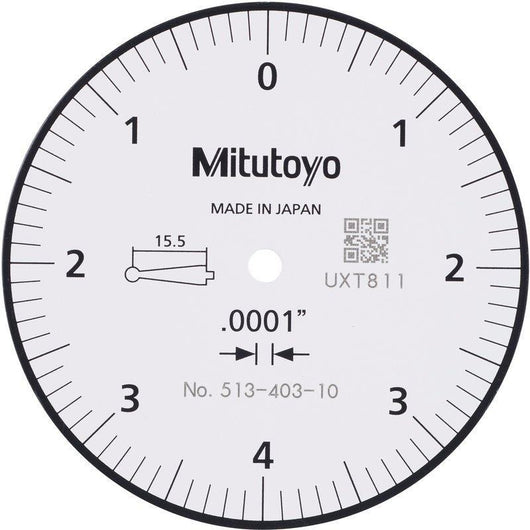

39mm Diameter Face Large dial face for easy reading with the installed 2mm (.08") diameter point carbide tipped. These indicators are ruggedly housed within a satin chrome finished case. Bezel and dial are adjustable for easy zero setting with fully jewelled movements. Automatic reversible contact point is adjustable through 240°. The precision miniature pivot bearings give a frictionless movement of the contact point. One piece bezel of crystal design ensures resistance to water and dust.
Scale: 0-4-0
Accuracy: ±0.0001"
H MPE (Hysteresis): 0.0001"
R MPE (Repeatability): ±0.00004"
Mass_ 58 g
Digital/Analog_ Analog
Inch-Metric: Inch
Error of indication one revolution: ±0.0001"
MPE first one revolution: ±0.0001"
Contact point: Thread M 1.7 x 0.35
Delivered: In a box with stem ø3/8" and 0.157", stylus ø0.039"/0.079"/0.118", swivel clamp and holding bar
Functions: Full set
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202803197 |
| Accuracy e mpe | +/-0.0001" |
| Contact point thread | M1.7X0.35 |
| Data output | No |
| Dial scale type | Balanced |
| Display type | Dial |
| Lug back | Flat Back |
| Measurement range | 0-0.008" |
| Measurement units | Imperial |
| Mpn | 513-403-10T |
| Product series | Series 513 - Horizontal Dial Test Indicator |
| Product sub type | Lever |
| Repeatability | +/-0.0004" |
| Resolution | 0.0001" |
| Stem diameter | 0.375" |
