- Drastically enhanced durability, sensitivity and visibility.

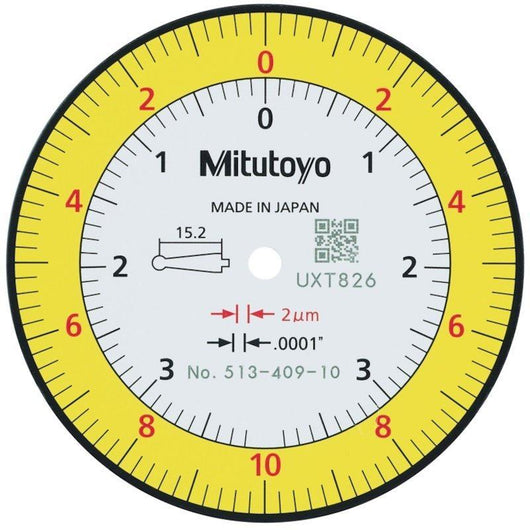

- Glare-free flat crystal face allows easy reading of graduations.
This Dial Test Indicator offers you the following benefits:
- O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
- The stylus length is on the dial face to reorder a replacement
- Multi-layer coatings on the crystal.
Key Specifications
Range: 0.2
Graduation: 0.002 mm
Scale: 0-10-0, 0-38-0
Accuracy: 3 µm
MPE any 10 scale divisions: 2 µm
MPE any 1/2 3 µm
revolution:
MPE measuring range: 3 µm
H MPE (Hysteresis): 2 µm
R MPE (Repeatability): 1 µm
Mass_ 58 g
Digital/Analog_ Analog
Inch-Metric: Metric/Inch
Contact point: Thread M 1.7 x 0.35
Delivered: In a box with stem ¸3/8" and 0.157", stylus ¸0.039"/0.079"/0.118", swivel clamp and holding bar
Functions: Full set
