mitutoyo dial test indicator horizontal type 0 5mm 0 01mm 4 8mm stem with bracket 513 414 10t

Pre-order

SKU: MIT-513-414-10T

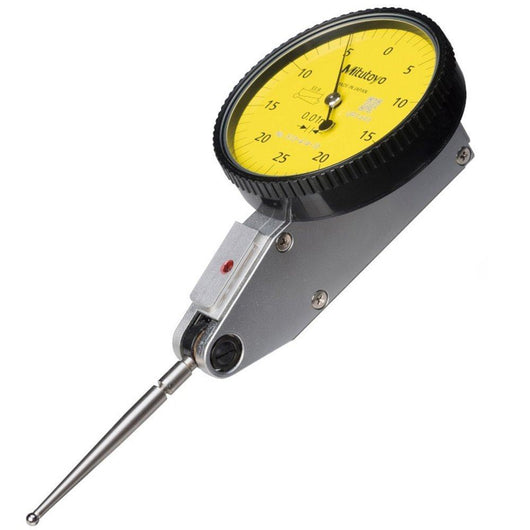

Mitutoyo Dial Test Indicator Horizontal Type 0.5mm 0.01mm 4/8mm Stem with Bracket 513-414-10T

Name: Mitutoyo Dial Test Indicator Horizontal Type 0.5mm 0.01mm 4/8mm Stem with Bracket 513-414-10T
Brand: Mitutoyo
SKU: MIT-513-414-10T
Price: 124.50 GBP
Availability: InStock

Was: £166.00

£124.50 EX VAT

£149.40 INC VAT

Available for Pre-Order (Dispatched in Approximately 3-5 Working Days)

Description
Specs & Data Sheets
Shipping & Delivery Information
Warranty Information

Description

Drastically enhanced durability, sensitivity and visibility.

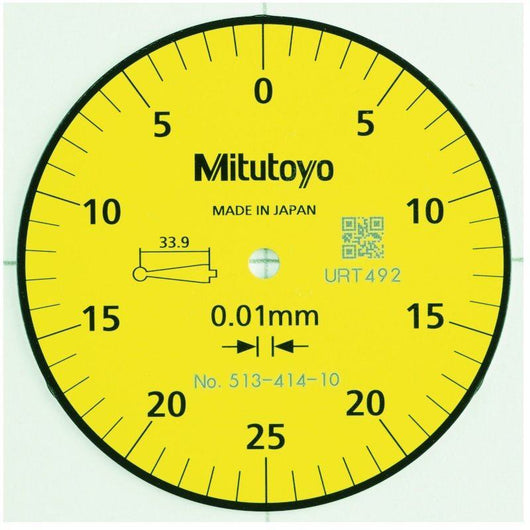

Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
Multi-layer coatings on the crystal.

Mitutoyo Dial Test Indicator Horizontal Type 0.5mm 0.01mm 4/8mm Stem with Bracket 513-414-10T

Key Specifications

Range: 0.5 mm

Graduation: 0.01 mm

Scale: 0-25-0

MPE any 10 scale divisions: 5 µm

MPE measuring range: 10 µm

H MPE (Hysteresis): 4 µm

R MPE (Repeatability): 3 µm

Carbide stylus tip ø2 mm No.: 131324

Measuring force: 0.01-0.2 N

Mass_ 45 g

Digital/Analog_ Analog

Inch-Metric: Metric

Type: Full set

Contact point: Thread M 1.7 x 0.35

Delivered: In a box with stem ø8/4 mm, stylus ø1/2/3 mm, swivel clamp and holding bar

Double scale spacing_ Yes

Functions: Full set

Specs & Data Sheets

Product Specifications

Specification	Details
Barcode (ISBN, UPC, GTIN, etc.)	5056202803272
Accuracy e mpe	0.01mm
Accuracy h mpe	n/a
Contact point thread	M1.7X0.35
Data output	No
Dial scale type	Balanced
Display type	Dial
Lug back	Flat Back
Measurement range	0-0.5mm
Measurement units	Metric
Mpn	513-414-10T
Product series	Series 513 - Horizontal Dial Test Indicator
Product sub type	Lever
Repeatability	0.003mm
Resolution	0.01mm
Stem diameter	8/4mm
