Mitutoyo Dial Test Indicator Horizontal Type 0.5mm 0.01mm 8mm Stem 513-414-10E
£113.40 INC VAT
Checkout With
- Drastically enhanced durability, sensitivity and visibility

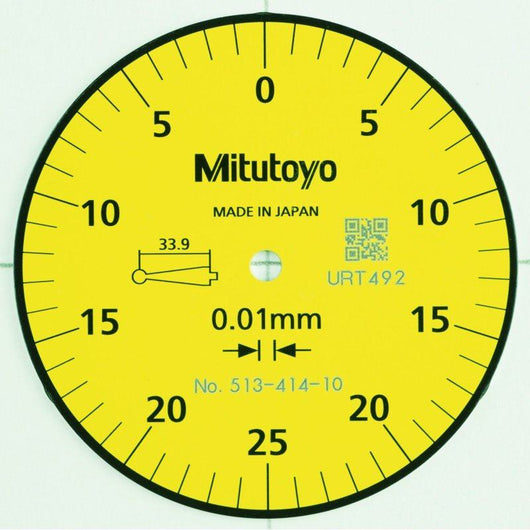

- Glare-free flat crystal face allows easy reading of graduations
Mitutoyo Dial Test Indicator Horizontal Type 0.5mm 0.01mm 8mm Stem 513-414-10E
This is Dial Test Indicator offers you the following benefits:
- O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
- The stylus length is on the dial face to reorder a replacement
- Multi-layer coatings on the crystal.
Key Specifications
Range: 0.5 mm
Graduation: 0.01 mm
Scale: 0-25-0
MPE any 10 scale divisions: 5 µm
MPE measuring range: 10 µm
H MPE (Hysteresis): 4 µm
R MPE (Repeatability): 3 µm
Carbide stylus tip ø2 mm No.: 131324
Measuring force: 0.01-0.2 N
Mass_ 45 g
Digital/Analog_ Analog
Inch-Metric: Metric
Type: Basic set
Contact point: Thread M 1.7 x 0.35
Delivered: In a box with stem ø8 mm, stylus ø2 mm
Double scale spacing_ Yes
Functions: Basic set
Brand Information
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
Product Specifications
| Specification | Details |
|---|---|
| Barcode (ISBN, UPC, GTIN, etc.) | 5056202803265 |
| Accuracy e mpe | 0.01mm |
| Accuracy h mpe | n/a |
| Contact point thread | M1.7X0.35 |
| Data output | No |
| Dial scale type | Balanced |
| Display type | Dial |
| Lug back | Flat Back |
| Measurement range | 0-0.5mm |
| Measurement units | Metric |
| Mpn | 513-414-10E |
| Product series | Series 513 - Horizontal Dial Test Indicator |
| Product sub type | Lever |
| Repeatability | 0.003mm |
| Resolution | 0.01mm |
| Stem diameter | 8mm |
