Key Features
- Titanium-coated measuring pins for excellent durability and impact resistance
- IP65 water and dust protection - ideal for machining environments with coolant fluid
- Large 7.5mm LCD display for easy reading
- Complete digital micrometer set with multiple measurement ranges
Technical Specifications
| Specification |
Value |
| Measuring Range |
0.5 - 1" (Inch) |
| Individual Ranges |
0.5-0.65", 0.65-0.8", 0.8-1" |
| Digital Resolution |
0.001 mm / 0.00005" (up to 4"), 0.001 mm / 0.0001" (over 5") |
| Display |
LCD with 7.5mm character height |
| Measuring Face |
Titanium-coated tungsten carbide (6-12mm), Titanium-coated hardened steel (12-100mm) |
| Taper |
Tungsten carbide |
| Protection Rating |
IP65 (water and dust resistant) |
| Weight |
1290 g |
| Power Supply |
1 x SR-44 battery |
| Battery Life |
Approximately 1.2 years |
| Unit System |
Inch/Metric switchable |
| Type |
Digital |
Models & Components
| Component |
Model/Details |
| Model Numbers |
468-264, 468-265, 468-266 |
| Setting Rings |
Ø0.65" (177-182), Ø0.8" (177-287) |
Digital Functions
| Feature |
Available |
| ZERO/ABS Function |
Yes |
| Auto Power OFF (20 min) |
Yes |
| Low Voltage Alarm |
Yes |
| Function Lock |
Yes |
| HOLD Function |
Yes |
| 2 x PRESET Memory |
Yes |
| Data Output |
Yes |
Package Contents

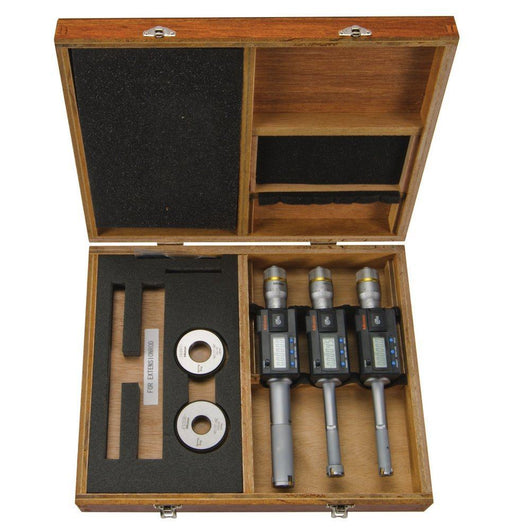

Complete digital inside micrometer set, protective carrying box, calibration key, SR-44 battery, setting rings, and official certificate of inspection.
