- With 10 mm feed per revolution, it delivers twenty times as fast as standard devices.
- Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid.
- Supplied in fitted plastic case
- IP54 protection permits use in environments exposed to cutting oil, coolant, dust, etc., for use on most shop floor environments
- ABSOLUTE linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Elimination of overspeed errors provides a higher measurement reliability and repeatability

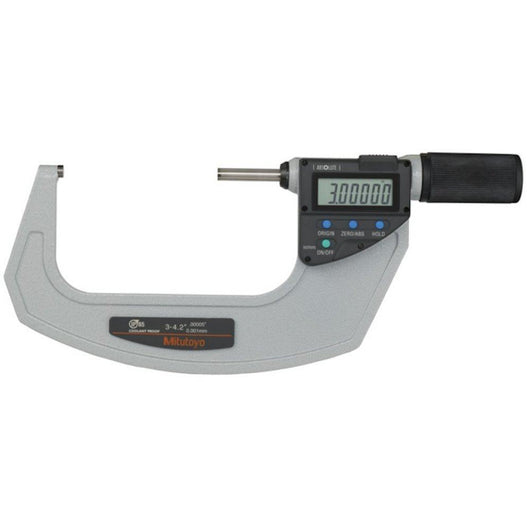

The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:
- ABSOLUTE linear scale means no restriction on adjustment speed.
- Larger measuring range - 30 mm compared with 25 mm - than standard micrometer.
Key Specifications
Range: 3 - 4.2"
Parallelism: 0.00012"
Digital step: 0.00005"/0.001 mm
Maximum Permissible Error J MPE: ±0,00015"
Measuring force: 5 - 12 N
Mass_ 625 g
Data output: Yes
Display: LCD, character height 10 mm
Measuring face: Carbide-tipped, micro-lap finish
Measuring spindle: ¸6.35 mm, non-rotating, 10 mm spindle feed
Power supply: 1 battery SR-44
Battery life: Approx. 5 years
Digital/Analog_ Digital
Inch-Metric: Inch/Metric
Measuring spindle: ¸6.35 mm, non-rotating, 10 mm spindle feed
Battery life: Approx. 5 years
Delivered: including Box, gauge block (from 25 mm upward), 1 battery
