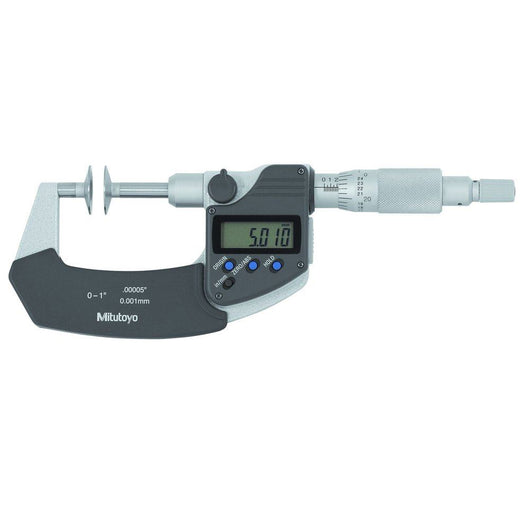

- Non-rotating spindle and disc-shaped measuring surfaces.
- Measuring the root tangent length of spur and helical gears
- Measurable range of gear pitch: 0,5-6 module
- Suitable for measuring felt, rubber, cardboard, fabric etc.
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments
Key Specifications
Range: 2 - 3 [Inch]
Parallelism: 0.0003"
Digital step: 0.00005"/0.001 mm
Maximum Permissible Error J MPE: ±0.0003"
Measuring force: 3 - 8 N
Measurable module: 0.5 - 6
Mass_ 635 g
Display: LCD, character height 7.5 mm
Measuring face: Hardened steel, micro-lap finish
Measuring spindle: With spindle lock, ¸6.35 mm, spindle pitch 0.5 mm
Scale: Thimble and sleeve satin chrome finish, ¸18 mm
Power supply: 1 battery SR-44
Battery life: Approx. 2.4 years
Inch-Metric: Inch/Metric
Digital/Analog_ Digital
Delivered: Including box, setting standard (from 25 mm upward), key, 1 battery
