- The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement)
- Coefficients A,B and C are freely definable. X = displacement of the plunger
- Analogue bar graph in the display (14 different scales switchable)
- GO/‚±NG tolerance judgement function
- MAX/MIN/RANGE function to measure peak values
- A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably
- Easy indicator setup via a setup menu
- A USB interface box can be used to set up the indicator from PC via dedicated software
Mitutoyo History - Celebrating over 80 years in the Metrology industry! Mitutoyo started from humble beginnings in 1934 in Japan and are now recognised as a world leading manufacturer of measuring tools such as micrometers, calipers, and system instrument products such as co-ordinate measuring instruments, form measurement instruments and optical measuring instruments

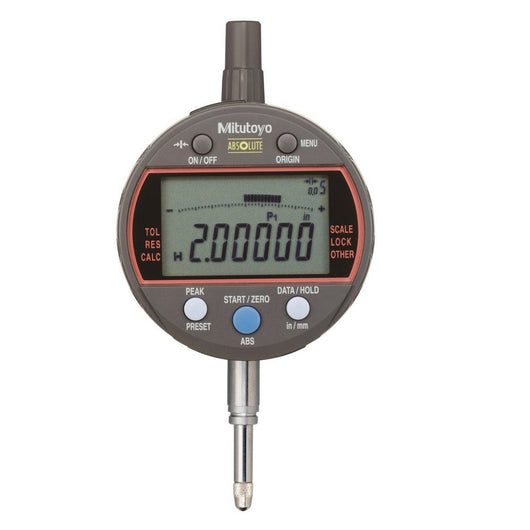

Key Specifications
Range: 0.5"/12.7 mm
Range: 0.5" [Inch]
Digital step: 0.00005"/0.001 mm
Max. Permissible Error E MPE: 0.0001"/0.003 mm
H MPE (Hysteresis): 0.0001"/0.002 mm
R MPE (Repeatability): 0.0001"/0.002 mm
Type: EN ISO Standard
Measuring force: ‰¤ 1,5 N
Protection: IP42
Mass_ 170 g
Display: LCD, character height 8 mm, rotatable 330°
Max. response speed: Unlimited
Measurement frequency (MAX/MIN/RANGE): Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)
Alarm: Low voltage, ABS composition error, overflow error, tolerance limit setting error
Stem ˜: 8 mm
Contact point: Carbide ball, thread M 2.5 x 0.45 mm
Power supply: 1 battery CR-2032
DATA/HOLD: Yes
PRESET 3x_ Yes
Data output: Yes
ON/OFF: Yes
MAX/MIN/RANGE: Yes
ZERO/ABS: Yes
Selectable resolution: Yes
Function lock: Yes
GO/±NG judgement: Yes
Calculation function (with formula): Yes
Digital/Analog_ Digital
Inch-Metric: Inch/Metric
Battery life: Standard mode: approx. 1 year
fast mode: approx. 4.5 month
Delivered: Including 1 battery
